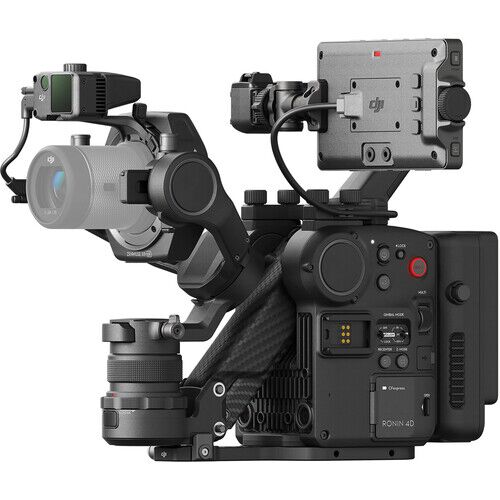

DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit

Shop 6K Version

What’s in the box?

SKU: DJRONIN4D8K Categories: , Tag:

Description

Designed for both solo use by independent creators and dynamic pro video capture, the Ronin 4D from DJI is an innovative all-in-one camera/gimbal solution. The “4D” designation refers to the Z-axis (vertical) stabilization built into the X9-8K camera and the three-axis gimbal stabilization. Constructed from lightweight carbon fiber and an aluminum/magnesium alloy, this system is ideal for independent content creators, indie filmmakers, and event videographers. The full-frame capture at rates up to 8K30 in ProRes HQ and 8K75 in ProRes Raw and Ronin’s CineCore 3.0 image processing system with ACES workflow support also suits the 4D as a “B” or 2nd unit camera for larger cine-style productions.

This combo includes the main Zenmuse X9-8K full-frame video camera and a 3-axis gimbal, plus an array of modular monitor, focusing, and control components. Kit items include a DL lens mount, a LiDAR range finder, one ProSSD 1TB drive, one TB50 battery, a charging hub, and left and right control handgrips.

Specifications

Imaging
Lens Mount DL
Interchangeable Lens Mount Yes
Sensor Resolution Effective: 35.4 Megapixel
Sensor Type Full-Frame CMOS
Image Stabilization Digital, 4-Axis
Built-In ND Filter Mechanical Filter Wheel with Clear, 1 Stop (1/2), 2 Stop (1/4), 3 Stop (1/8), 4 Stop (1/16), 5 Stop (1/32), 6 Stop (1/64), 7 Stop (1/128), 8 Stop (1/256), 9 Stop (1/512) ND Filters
Internal Filter Holder Yes
ISO Sensitivity 800 to 5000 (Native)
200 to 12,800
Shutter Type Rolling Shutter
Shutter Speed 1/24 to 1/8000 sec
Advertised Dynamic Range 14 Stops
White Balance 2000 to 11,000K
Gimbal
Rotation Range Yaw (Pan): 285°
Pitch (Tilt): 210° (-55 to 155°)
Roll: 70° (-35 to 35°)
Z-Axis Adjustment Range 5.1″ / 130 mm
Follow Speed Pan/Tilt/Roll: 360°/s using DJI Master Wheels or Pro Force
Pan/Tilt/Roll: 120°/s using Ronin 4D Handgrip
Load Capacity 2.1 lb / 960 g
Internal Recording
Raw Recording Raw:
8192 x 4320
Recording Modes ProRes 422HQ:
8192 x 4320p at 23.98/24/25/29.97/30 fps
4096 x 2160p at 23.98/24/25/29.97/30/48/50/59.94/60/120 fps
H.264 4:2:0 10-Bit:
4096 x 2160p at 23.98/24/25/29.97/30/48/50/59.94/60 fps
Gamma Curve HDR-HLG, Rec709
Audio Recording 2-Channel 48 kHz LPCM Audio
Still Image Support None
External Recording
Video Output USB:
8192 x 4320p at 23.98/24/25/29.97/30 fps
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps
SDI/BNC:
8192 x 4320p at 23.98/24/25/29.97/30 fps
4096 x 2160p at 23.98/24/25/29.97/59.94/60 fps
Raw Output USB In Raw, Full Frame Mode:
8192 x 4320 at 23.98/24/25/29.97/30/50/59.94/60/72/75 fps
IP Streaming None
Interface
Media/Memory Card Slot Single Slot: DJI ProSSD
Single Slot: CFexpress Type B
Video Connectors 1 x BNC (3G-SDI) Output
1 x HDMI Output
Audio Connectors 1 x 1/8″ / 3.5 mm Stereo Mic/Line Level Input
1 x 1/8″ / 3.5 mm Stereo Headphone Output
Built-In Microphone Type Stereo
Other I/O 1 x USB Type-C USB 3.1 Gen 1 Data, Video Input/Output
1 x Proprietary Monitor Output
1 x BNC Timecode
Monitor
Size 5.5″
Resolution 1920 x 1080
Display Type Tilting Touchscreen LCD
EVF
EVF Optional, Not Included
Power
Battery Type DJI TB50
Power Connectors 1 x Barrel (12 to 30 VDC) Input
Environmental
Operating Temperature 14 to 104°F / -10 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Physical
Material of Construction Carbon Fiber, Aluminum, Magnesium Alloy
Accessory Mount 2 x 1/4″-20 Female
1 x 3/8″-16 Female
2 x Cold Shoe Mount
Dimensions 12.2 x 11.4 x 10.9″ / 309 x 290 x 277 mm (With Protrusions)
9.3 x 6.3 x 4.5″ / 235 x 160 x 115 mm (Without Protrusions)
Weight 10.3 lb / 4.67 kg
3.2 lb / 1.45 kg
2.29 lb / 1.04 kg

Included

Zenmuse X9-8K Gimbal Camera
DL Mount, Body Cap & Lens Cap
Zenmuse X9 Gimbal Base Cap
Ronin 4D Gimbal Base Cap
Main Body
2 x Handgrip
Handgrip Extended Control Stick
Top Handle
TB50 Intelligent Battery, Charger Adapter & Mount
2 x Handgrip Strap
Power Adapter
8 x AC Power Cable
Baseplate
LiDAR Range Finder/Focus Motor Cable
USB Type-A to Type-C Cable
Ronin 4D Carrying Case
Ball-End Allen Key (3mm)
6 x 1/4″-20 Screw (10mm)
LiDAR Range Finder & Holder
C-Shaped DL Mount Ring
2 x M2-3 Screw (3mm)
Ball-End Allen Key (1.5mm)
