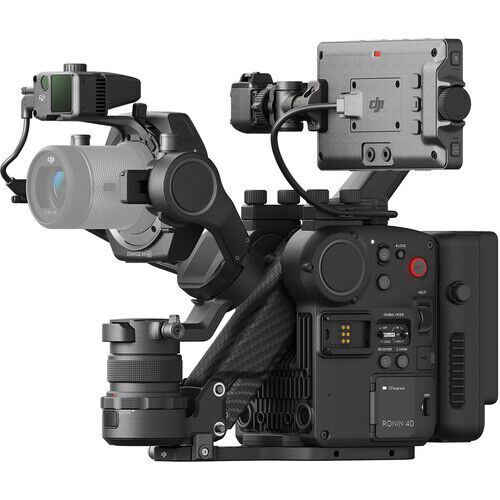

DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit

Shop 8K version

What’s in the box?

SKU: DJRONIN4D6K Categories: , Tag:

Description

Designed for both solo use by independent creators and dynamic pro video capture, the Ronin 4D from DJI is an innovative all-in-one camera/gimbal solution. The “4D” designation refers to the Z-axis (vertical) stabilization built into the X9-6K camera and the three-axis gimbal stabilization. Constructed from lightweight carbon fiber and an aluminum/magnesium alloy, this system is ideal for independent content creators, indie filmmakers, and event videographers. The full-frame capture at rates up to 6K60 in both ProRes HQ and ProRes Raw and Ronin’s CineCore 3.0 image processing system with ACES workflow support also suits the 4D as a “B” or 2nd unit camera for larger cine-style productions.

This combo includes the main Zenmuse X9-6K full-frame video camera and a 3-axis gimbal, plus an array of modular monitor, focusing, and control components. Kit items include a DL lens mount, a LiDAR range finder, one ProSSD 1TB drive, one TB50 battery, a charging hub, and left and right control handgrips.

Included

Zenmuse X9-6K Gimbal Camera
DL Mount, Body Cap & Lens Cap
Zenmuse X9 Gimbal Base Cap
Ronin 4D Gimbal Base Cap
Main Body
2 x Handgrip
Handgrip Extended Control Stick
Top Handle
TB50 Intelligent Battery, Charger Adapter & Mount
2 x Handgrip Strap
Power Adapter
8 x AC Power Cable
Baseplate
LiDAR Range Finder/Focus Motor Cable
USB Type-A to Type-C Cable
Ronin 4D Carrying Case
Ball-End Allen Key (3mm)
6 x 1/4″-20 Screw (10mm)
LiDAR Range Finder & Holder
C-Shaped DL Mount Ring
2 x M2-3 Screw (3mm)
Ball-End Allen Key (1.5mm)

Specifications

Imaging
Lens Mount DL
Interchangeable Lens Mount Yes
Sensor Resolution Effective: 24.1 Megapixel
Sensor Type Full-Frame CMOS
Image Stabilization Digital, 4-Axis
Built-In ND Filter Mechanical Filter Wheel with Clear, 1 Stop (1/2), 2 Stop (1/4), 3 Stop (1/8), 4 Stop (1/16), 5 Stop (1/32), 6 Stop (1/64), 7 Stop (1/128), 8 Stop (1/256), 9 Stop (1/512) ND Filters
Internal Filter Holder Yes
ISO Sensitivity 200 to 12,800
Shutter Type Rolling Shutter
Shutter Speed 1/24 to 1/8000 sec
Advertised Dynamic Range 14 Stops
White Balance 2000 to 11,000K
Gimbal
Rotation Range Yaw (Pan): 285°
Pitch (Tilt): 210° (-55 to 155°)
Roll: 70° (-35 to 35°)
Z-Axis Adjustment Range 5.1″ / 130 mm
Follow Speed Pan/Tilt/Roll: 360°/s using DJI Master Wheels or Pro Force
Pan/Tilt/Roll: 120°/s using Ronin 4D Handgrip
Load Capacity 2.1 lb / 960 g
Internal Recording
Raw Recording Raw:
6008 x 3168 at 23.98/24/25/29.97/30/48 fps (3.4 Gb/s)
Recording Modes ProRes 422HQ:
6008 x 3168p at 23.98/24/25/29.97/30/50/59.94/60 fps
4096 x 2160p at 23.98/24/25/29.97/30/48/50/59.94/60/72/96/100/120 fps
2048 x 1080p at 23.98/24/25/29.97/30/48/50/59.94/60/72/96/100/120 fps
H.264 4:2:0 10-Bit:
4096 x 2160p at 23.98/24/25/29.97/30/48/50/59.94/60/72/96/100/120 fps
2048 x 1080p at 23.98/24/25/29.97/30/48/50/59.94/60/72/100/120 fps
Gamma Curve HDR-HLG, Rec709
Audio Recording 2-Channel 48 kHz LPCM Audio
Still Image Support None
External Recording
Video Output USB:
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps
USB:
2048 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
SDI/BNC:
4096 x 2160p at 23.98/24/25/29.97/59.94/60 fps
2048 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Raw Output External Recorder:
6008 x 3168 at 23.98/24/25/29.97/30/50/59.94/60/100/120 fps
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60/100/120 fps
2048 x 1080 at 23.98/24/25/29.97/30/50/59.94/60/100/120 fps
IP Streaming None
Interface
Media/Memory Card Slot Single Slot: DJI ProSSD
Single Slot: CFexpress Type B
Video Connectors 1 x BNC (3G-SDI) Output
1 x HDMI Output
Audio Connectors 1 x 1/8″ / 3.5 mm Stereo Mic/Line Level Input
1 x 1/8″ / 3.5 mm Stereo Headphone Output
Built-In Microphone Type Stereo
Other I/O 1 x USB Type-C USB 3.1 Gen 1 Data, Video Input/Output
1 x Proprietary Monitor Output
1 x BNC Timecode
Monitor
Size 5.5″
Resolution 1920 x 1080
Display Type Tilting Touchscreen LCD
EVF
EVF Optional, Not Included
Power
Battery Type DJI TB50
Power Connectors 1 x Barrel (12 to 30 VDC) Input
Environmental
Operating Temperature 14 to 104°F / -10 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Physical
Material of Construction Carbon Fiber, Aluminum, Magnesium Alloy
Dimensions 12.2 x 11.4 x 10.9″ / 309 x 290 x 277 mm (With Protrusions)
9.3 x 6.3 x 4.5″ / 235 x 160 x 115 mm (Without Protrusions)
Weight 10.3 lb / 4.67 kg
3.2 lb / 1.45 kg
2.29 lb / 1.04 kg
