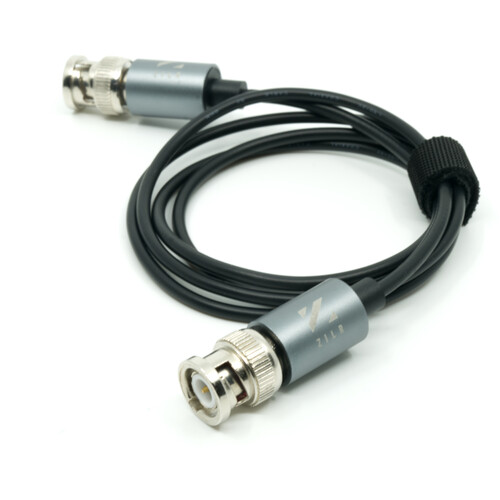

ZILR 12G-SDI BNC Cable (3.3′)
The ZILR 12G-SDI BNC Cable (3.3′) is a professional-grade video interconnect engineered to bridge the gap between high-end cinema cameras and remote monitoring or recording stations. Offering a generous 1-meter (3.3 feet) reach, this cable is designed to handle the massive data requirements of uncompressed 4K video while maintaining a slim, highly flexible profile. It provides the necessary length for studio-based tripod setups, handheld rigs with side-mounted monitors, or connecting to production switchers without the bulk and stiffness of traditional industrial-grade SDI cables.
High-Bandwidth 12G-SDI Performance
This cable is fully certified for the 12G-SDI standard, providing a massive 12 Gb/s bitrate that enables the transmission of uncompressed 4K video at 60fps (up to 4096×2160) over a single link. Its high-frequency design supports DC to 12 GHz signals, ensuring it is fully backwards compatible with 6G, 3G, and HD-SDI equipment. This makes it a future-proof solution for filmmakers moving into high-resolution RAW workflows where signal reliability and bandwidth are mission-critical.
Professional Build and Signal Integrity
Constructed with 28 AWG wire and a high-density copper braided shield (>85%), the ZILR cable is designed to yield a consistent, clean signal even in environments heavy with electromagnetic interference. Each end is fitted with a precision-machined BNC male connector featuring a gold-plated center pin (15u”) to ensure maximum conductivity and resistance to corrosion over years of use. The rugged protective casing on the connectors is engineered to prevent snapping or fatigue at the connection point, a common failure in thin-gauge cables.
Flexible Design for Modern Rigs
Despite its high-performance capabilities, the cable maintains a remarkably thin 3.0mm diameter, making it significantly more manageable than standard RG-6 cables. This ultra-flexible design is particularly advantageous for gimbal operators and handheld shooters who require clean cable routing that doesn’t interfere with the balance of the stabilizer or the ergonomics of the rig. The polyethylene 80p insulation provides excellent heat management, ensuring stable performance during long continuous recording sessions.
Versatile Production Connectivity

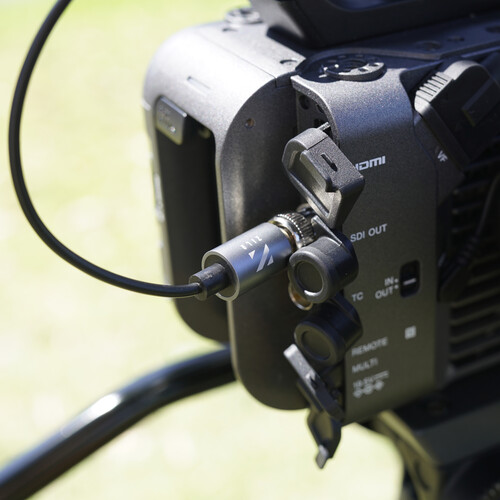

At 3.3 feet (1 meter), this cable is the ideal length for “off-camera” monitoring, allowing a director or AC to view the feed from a nearby stand without being tethered too closely to the camera body. It is highly compatible with the latest generation of cinema cameras, including the RED V-Raptor, RED Komodo, Sony FX series, and Blackmagic Video Assist recorders. Whether used for on-set monitoring or linking external recorders, the secure locking BNC interface ensures that the signal remains uninterrupted during high-action production.
Key Specifications:
-
Cable Length: 3.3′ (1 m)
-
Connector Type: BNC to BNC (Male)
-
Bandwidth: 12G-SDI (Up to 12 Gb/s bitrates)
-
Resolution Support: 4K @ 60Hz (Up to 4096×2160), Full HD 1080p
-
Wire Gauge: 28 AWG Coaxial
-
Shielding: Copper Braid >85%
-
Cable Thickness: 3.0mm +/- 0.15mm
-
Frequency Range: DC to 12 GHz
-
Impedance: 75 Ohms
-
Materials: Polyethylene 80p insulation; Gold pin connectors
Features Include:
-
12G-SDI Certified: Supports high-bitrate 4K 60p and RAW video
-
Gold-Plated Pins: Ensures reliable electrical contact and durability
-
Ultra-Flexible Jacket: Ideal for tight routing and gimbal balance
-
Protective Casing: Reinforced connectors to prevent cable snapping
-
Interference Shielding: Copper braiding prevents signal dropouts
-
Universal Compatibility: Works with 12G, 6G, 3G, HD, and SD outputs
-

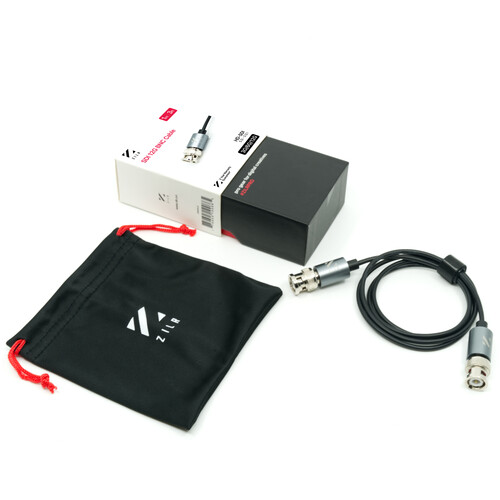

Included Storage Pouch: Convenient for on-the-go organization
