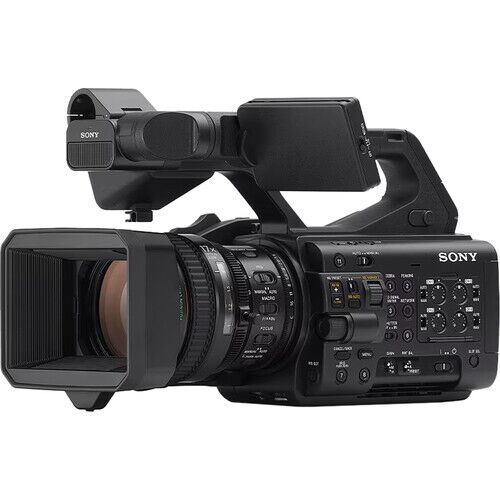

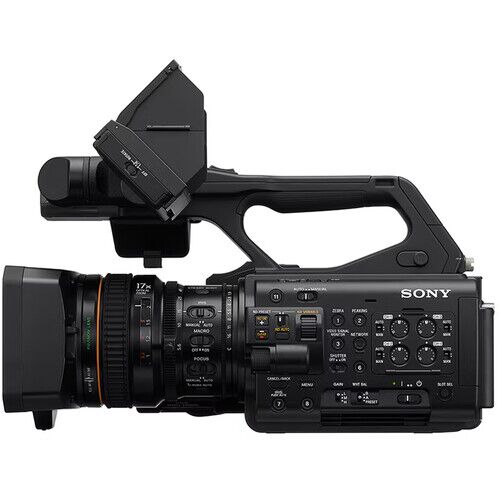

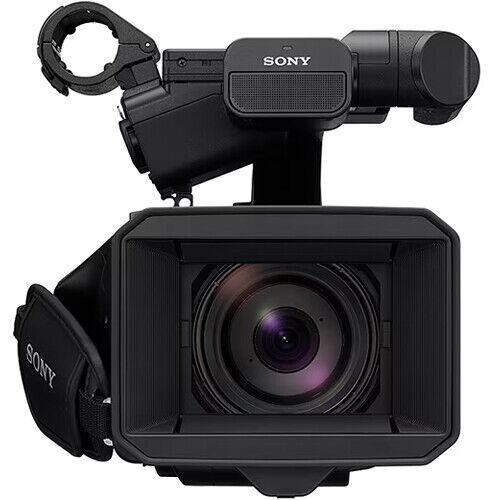

Sony PXW-Z300 3-CMOS XDCAM Camcorder

Key Features
  • 1/2″-Type Exmor R 3-CMOS Sensor
  • Supports up to UHD 4K60 Recording
  • 17x Optical Zoom, Constant f/1.9 Maximum
  • Dedicated AI Focusing Processor
  • Digital Content Authentication
  • Electronic Variable ND Filter
  • XAVC Intra/Long, MPEG HD422, HEVC Proxy
  • S-Cinetone, ITU709, 709tone, HLG, 3D LUT
  • Multicamera Control App, 4-Ch Audio
  • RTMP, RTMPS, SRT Stream, Chunk Transfer
SKU: PXW-Z300 Category: Tag:

Description

Sony PXW-Z300 3-CMOS XDCAM Camcorder: Versatile 4K Acquisition for Professional Production

The Sony PXW-Z300 3-CMOS XDCAM Camcorder is a robust and highly versatile camera designed to meet the rigorous demands of professional videographers, broadcasters, and content creators. Combining Sony’s renowned imaging technology with a compact, handheld form factor, the PXW-Z300 delivers stunning 4K UHD image quality, flexible recording options, and advanced network capabilities, making it an indispensable tool for news gathering, documentaries, corporate video, and live event production.

Triple 1/3-inch CMOS Sensors for Superior Image Quality:

At the core of the PXW-Z300 are its three newly developed 1/3-inch type CMOS image sensors. This 3-CMOS system meticulously captures red, green, and blue light independently, resulting in exceptional color reproduction, high sensitivity, and a wide dynamic range. This multi-sensor design minimizes color aliasing and ensures superb image clarity, even in challenging lighting conditions, providing stunning 4K UHD (3840×2160) resolution up to 60p and pristine Full HD.

Integrated Professional Zoom Lens:

The PXW-Z300 features a high-quality, integrated professional zoom lens (e.g., offering a 25x optical zoom ratio). This lens provides a broad focal range, from a versatile wide-angle to a powerful telephoto, enabling you to cover diverse shooting scenarios without the need for lens changes. Built-in optical image stabilization ensures steady, clear footage, even when shooting handheld or at full zoom.

Flexible XDCAM Recording Formats:

Equipped with Sony’s acclaimed XDCAM workflow, the PXW-Z300 supports a variety of recording formats, including XAVC-Intra and XAVC-Long GOP, for efficient and high-quality acquisition. It also supports legacy codecs like MPEG HD422, ensuring seamless integration into existing broadcast and post-production pipelines. Dual media slots (e.g., for SxS or SD cards) allow for simultaneous or relay recording, enhancing workflow flexibility and data redundancy.

Advanced Autofocus and Workflow Enhancements:

The camcorder features a highly responsive and accurate Fast Hybrid AF system, combining phase-detection and contrast-detection autofocus for quick and precise focusing. Advanced features like Face Detection AF and Object Tracking AF ensure your subjects remain sharp, even in dynamic situations. Built-in variable neutral density (ND) filters provide effortless exposure control in bright conditions, while a 3.5-inch type LCD monitor and 0.5-inch type OLED viewfinder offer clear monitoring and framing.

Comprehensive Connectivity and Network Features:

Designed for professional environments, the PXW-Z300 offers a full suite of connectivity options:

  • 12G-SDI Output: For high-quality 4K video output to external monitors or recorders.
  • HDMI 2.0 Output: Versatile output for 4K video.
  • Professional Audio: Two XLR 3-pin inputs support external microphones and line-level audio, complete with independent gain controls.

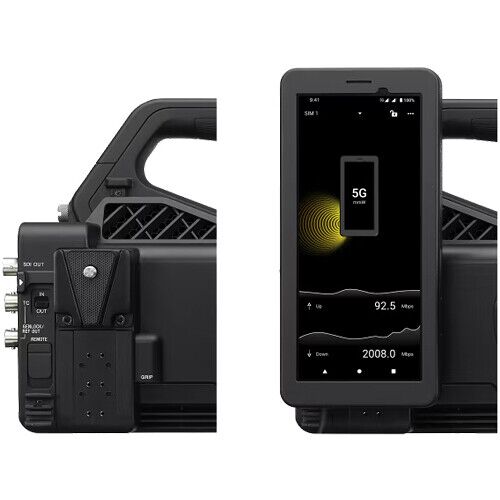

  • Network Capabilities: Integrated Wi-Fi and Ethernet connectivity facilitate live streaming, FTP transfer, and remote control via a smartphone or tablet, crucial for rapid turnaround workflows.

The Sony PXW-Z300 3-CMOS XDCAM Camcorder is a powerful and reliable workhorse for professionals. Its combination of superior image quality, flexible recording options, robust construction, and advanced network features makes it an ideal choice for capturing compelling 4K content with efficiency and precision in any professional application.

Key Features:

  • Three 1/3-inch type CMOS Sensors: Delivers stunning 4K UHD (3840×2160) resolution with excellent color and low light performance.
  • Integrated Professional Zoom Lens: High optical zoom ratio with optical image stabilization.
  • XDCAM Recording Formats: Supports XAVC-I, XAVC-L, and MPEG HD422 for flexible workflows.
  • Fast Hybrid AF: Quick and accurate autofocus with Face Detection and Object Tracking.
  • Built-in Variable ND Filters: Seamless exposure control in diverse lighting.
  • Dual Media Slots: For flexible and redundant recording (e.g., SxS/SD cards).
  • 12G-SDI & HDMI 2.0 Outputs: Professional video outputs for 4K workflows.
  • Professional Audio Inputs (XLR): For high-quality external audio.
  • Integrated Wi-Fi & Ethernet: For live streaming, FTP, and remote control.
  • Compact & Handheld Design: Ergonomic and portable for on-location shooting.

View More Sony Products Here

Specifications

Sensor Resolution
Not Specified by Manufacturer
Image Sensor
1/2″-Type 3-Chip CMOS
Image Stabilization
Optical in Integrated Lens
Internal Recording
MP4 Proxy/MXF/XAVC-I/XAVC-L
3840 x 2160 at 24.00/25/30.00/50/60.00 fps
1920 x 1080p at 24.00/25/30.00/50/60.00 fps
1920 x 1080i at 50/60.00 fps

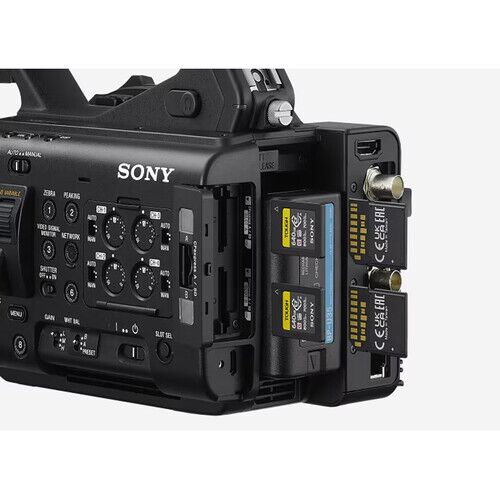

Media/Memory Card Slot
Dual Slot: CFexpress Type A / SD
Video I/O
1 x BNC (12G-SDI) Output
1 x HDMI (Unspecified Signal) Output
Mobile App Compatible
Yes: Android & iOS
App Name: Monitor & Control
Battery Type
Sony BP-U Series
Imaging
Sensor Resolution
Not Specified by Manufacturer
Image Sensor
1/2″-Type 3-Chip CMOS
Image Stabilization
Optical in Integrated Lens
Built-In ND Filter
2 to 7 Stop Electronic ND Filter
Capture Type
Video Only
Exposure Control
Shutter Type
Electronic Rolling Shutter

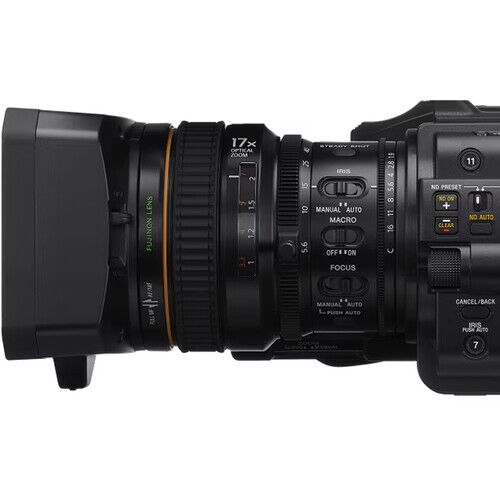

Lens
Focal Length
5.6 to 95.2mm (35mm Equivalent: 30.3 to 515mm)
Optical Zoom Ratio
17x
Max Digital Zoom
1.5x ( in UHD 4K)
4x ( in 1080p)
Maximum Aperture
f/1.9
Minimum Focus Distance
Not Specified by Manufacturer
Filter Size
No
Control Rings
Focus
Zoom
Iris
Focus Control
Autofocus
Manual Focus
Video Capture
Internal Recording
MP4 Proxy/MXF/XAVC-I/XAVC-L
3840 x 2160 at 24.00/25/30.00/50/60.00 fps
1920 x 1080p at 24.00/25/30.00/50/60.00 fps
1920 x 1080i at 50/60.00 fps
Fast-/Slow-Motion Support
Yes
Built-In Microphone
Stereo
Audio Recording
MP4, MXF, XAVC: 4-Channel
IP Streaming
No
Interface
Media/Memory Card Slot
Dual Slot: CFexpress Type A / SD

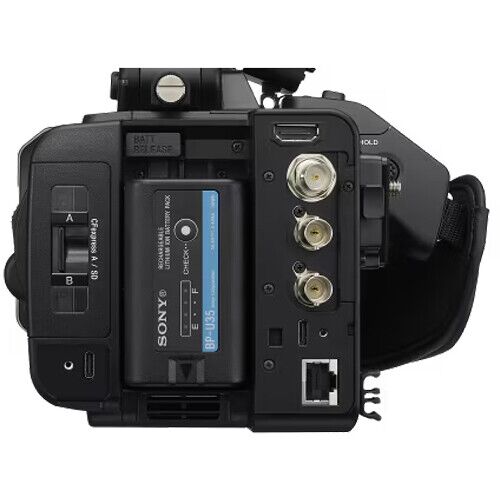

Video I/O
1 x BNC (12G-SDI) Output
1 x HDMI (Unspecified Signal) Output

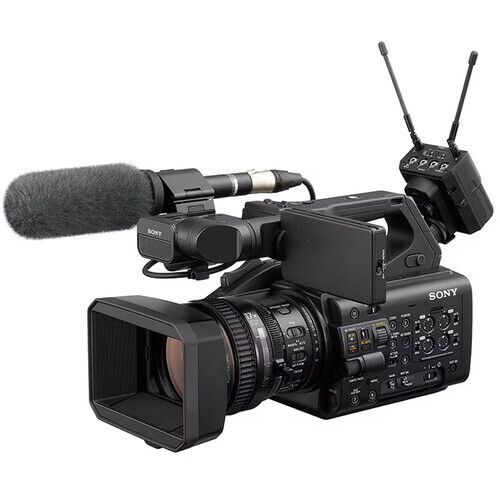

Audio I/O
2x XLR 3-Pin Microphone Input
1x 1/8″ / 3.5 mm TRS Stereo Headphone Output

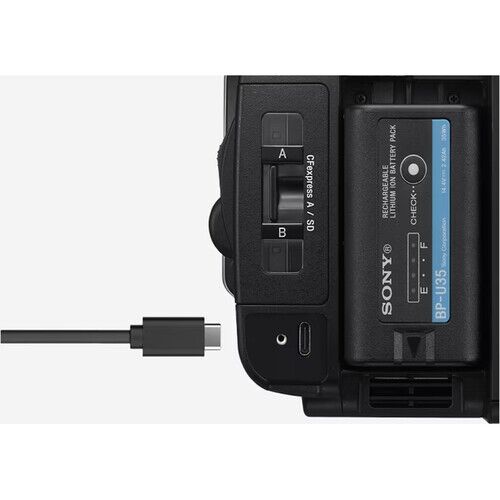

Power I/O
1x USB-C (20VDC at 5 A) Input

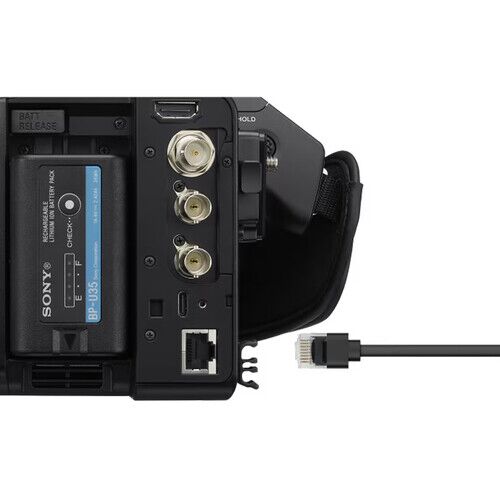

Other I/O
1x BNC (Timecode) Input/Output
1x BNC (Genlock) Input
1x BNC (Reference) Output
1x RJ45 (LAN)
Wireless
2.4 / 5 GHz Wi-Fi 5 (802.11ac)
Mobile App Compatible
Yes: Android & iOS
App Name: Monitor & Control
Global Positioning (GPS, GLONASS, etc.)
GPS

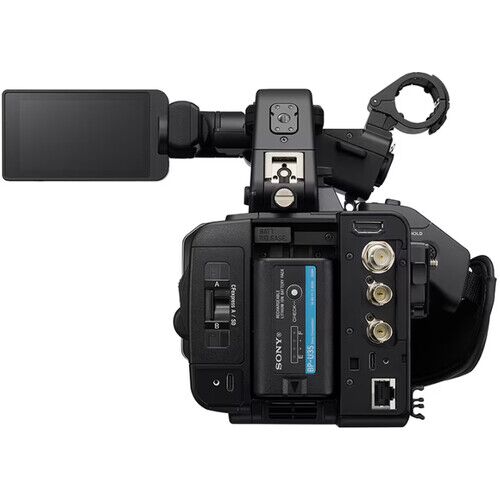

Monitor
Display Type

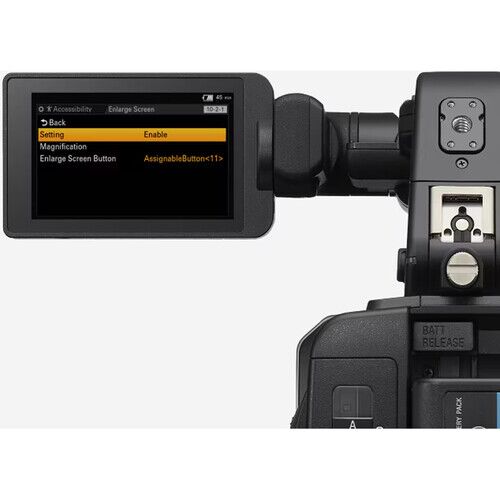

Primary Monitor: Articulating 3.5″ Touchscreen LCD
Resolution
Primary Monitor: 2,760,000 Dot
Viewfinder
Type
Support via Video Out Only
Focus
Focus Mode
Automatic, Manual Focus
Power
Battery Type
Sony BP-U Series
General
Shoe Mount
1x Intelligent Hot Shoe
Tripod Mounting Thread
1x 1/4″-20 Female
1x 3/8″-16 Female
Built-In Video Light
No
Dimensions (W x H x D)
Not Specified by Manufacturer
Weight
Not Specified by Manufacturer

What's In The Box

  • Sony PXW-Z300 3-CMOS XDCAM Camcorder
  • Lens Hood
  • Limited 1-Year Manufacturer Warranty
