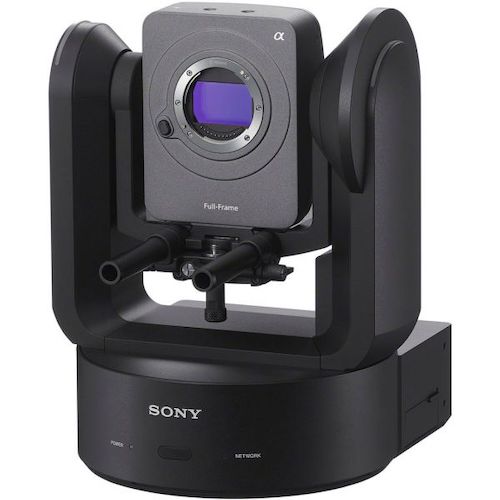

Sony FR7 Cinema PTZ Camera

  • Supports up to UHD 4K120 Video
  • Sony E-Mount Lens Interchangeability
  • 4K Full-Frame Sensor
  • 12G-SDI, HDMI & Streaming Output
  • Variable Electronic ND Filter
  • Smooth, Slow Pan & Tilt Movement
  • IR, IP & Web App Remote Control
  • Flexible PoE+ Installation
  • Genlock, Timecode & Tally Lamps
SKU: ILME-FR7 Category: Tag:

Description

S-Cinetone™ for a cinematic look without grading
The FX30 incorporates S-Cinetone, based on the colour science behind the highly regarded colour and skin tones of the FX9 and FX6. It delivers the natural mid-tones that are essential to healthy-looking skin, plus soft colours and gorgeous highlights. Because S-Cinetone produces all this directly within the camera, it’s easy to achieve a beautiful cinematic look without the necessity of post-production grading.

Dual Base ISO for cleaner images in low light
The Dual Base ISO feature provides two Base ISO settings; one at ISO 800 and one at ISO 2500. This allows you to select an appropriate noise floor, for clean images, as well as maximise the FX30’s dynamic range when shooting in both bright or low-light conditions. What’s more, a wide 14+ stops12 of latitude minimises the risk of blown highlights or blocked shadows over a wide range of lighting conditions.

Log recording for smooth cinematic colour grading
For full-scale productions, the S-Log3 gamma curve provided in the FX30 has been designed for smooth gradations, and to make it easier to achieve cinematic image quality when colour grading in post-production. Both S-Log3 and S-Gamut3.Cine offer high-quality colour reproduction over a wide latitude, and special care has been taken to adjust the camera’s output to ensure that the highest image quality can be easily achieved during post processing.

Sophisticated focus functions to handle any situation
The FX30 makes fast, accurate focusing as easy as possible. AF Assist17 smoothly switches between auto and manual focus, it enables easy rack focusing, and it can save time even when you are primarily using manual focus. Focus Map18 makes it easy to visualise depth of field while shooting, and Breathing Compensation19 provides a stable angle of view when rack focusing by minimising the field-of-view shift that can occur with some lenses.

Multi-thread body makes a cage unnecessary
Designed for mobility and efficiency, the body of the FX30 features five thread holes (1/4-20 UNC) for accessories, making a cage unnecessary. While providing ample capacity for accessory attachment, the fact that no cage is required contributes to reduced system size and weight for easier handheld shooting. The XLR handle unit25 provides three additional thread holes so that accessories and add-ons can be stably and securely attached.

Included

Sony FR7 Cinema Line PTZ Camera
RMT-RC1 Remote Commander
Lens Mount Cap for Body
AC Adapter
Power Cord
HDMI Cable Clamp
Limited 1-Year Warranty

Specifications

Imaging
Lens Mount Sony E
Sensor Type CMOS Sensor
Sensor Resolution Actual: 12.9 Megapixel
Effective: 10.3 Megapixel
Lens Communication Yes, with Autofocus Support
Built-In ND Filter 2 to 7 Stop Electronic ND Filter
Focus Control Autofocus
Autofocus Points Phase Detection: 627
Exposure Control
Shutter Type Electronic Rolling Shutter
Shutter Speed 1/8000 to 1 Second
ISO Sensitivity 800 to 12,800 (Extended: 409,600)
Gain -3 to 30 dB
Advertised Dynamic Range 15 Stops
Flip / Mirror Support Image Flip
White Balance 2000 to 15,000K
Presets: ATW, Set A
Video Capture
External Recording Modes Raw 16-Bit via SDI/BNC
4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
3840 x 2160 at 23.98/25/29.97/50/59.94 fps
1920 x 1080 at 23.98/24.00/25/29.97//50//59.94 fps
HDMI
4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
3840 x 2160 at 23.98/25/29.97/50/59.94 fps
1920 x 1080 at 23.98/24.00/25/29.97//50//59.94 fps
720 x 480 at 59.94 fps
720 x 576 at 50 fps
Internal Recording Modes XAVC-I 4:2:2 10-Bit
DCI 4K (4096 x 2160) at 24.00/25/29.97/50/59.94 fps [240 to 600 Mb/s VBR]
UHD 4K (3840 x 2160) at 25/29.97/50/59.94 fps [240 to 600 Mb/s VBR]
1920 x 1080 at 25/29.97/50/59.94 fps [89 to 222 Mb/s]
XAVC-L
UHD 4K (3840 x 2160) at 25/29.97/50/59.94 fps [100 to 150 Mb/s VBR]
1920 x 1080 at 25/29.97/50/59.94 fps [35 to 50 Mb/s VBR]
Audio Recording 4-Channel 24-Bit 48 kHz LPCM Audio
Gamma Curve HDR-HLG, Rec709, S Cinetone, Sony S-Log 3, Standard
IP Streaming NDI|HX, RTSP, SRT
640 x 360 to 4096 x 2160 (0.5 to 80.00 Mb/s)
Control
Presets 3 via IR
100 via IP
Move Speed Pan: 0.02 to 60°/sec
Tilt: 0.02 to 60°/sec
Movement Range Pan: 340° (-170 to 170°)
Tilt: 225° (-30 to 195°)
Tally Light Yes
Supported Control Protocols IR
VISCA
Interface
Media/Memory Card Slot Dual Slot: CFexpress Type A / SD
Video I/O 1 x BNC (12G-SDI) Output
1 x SFP+ Output
1 x HDMI Output
Audio I/O 1 x XLR 5-Pin Mic/Line (+48 V Phantom Power) Input
Other I/O 1 x BNC (Timecode)
1 x RJ45 (LAN) Control
1 x BNC (Genlock)
1 x RJ45 (Tally)
Power
PoE Support PoE++ 802.3bt
Power I/O 1 x Barrel (19.5 VDC) Input
Power Consumption PoE: to 71.3 W
Power Supply: to 80 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
General
Mounting 2 x 1/4″-20 Female for Tripod
Sound Level NC35
Dimensions (W x H x D) 11.4 x 9.2 x 8.9″ / 289 x 233 x 227 mm (Without Protrusions)
Weight 10.1 lb / 4.6 kg (Body Only)
