Sennheiser EW-DP 835 SET (S1-7)

R17,395.00

SKU: SEN-700033 Categories: , , Tag:

Description

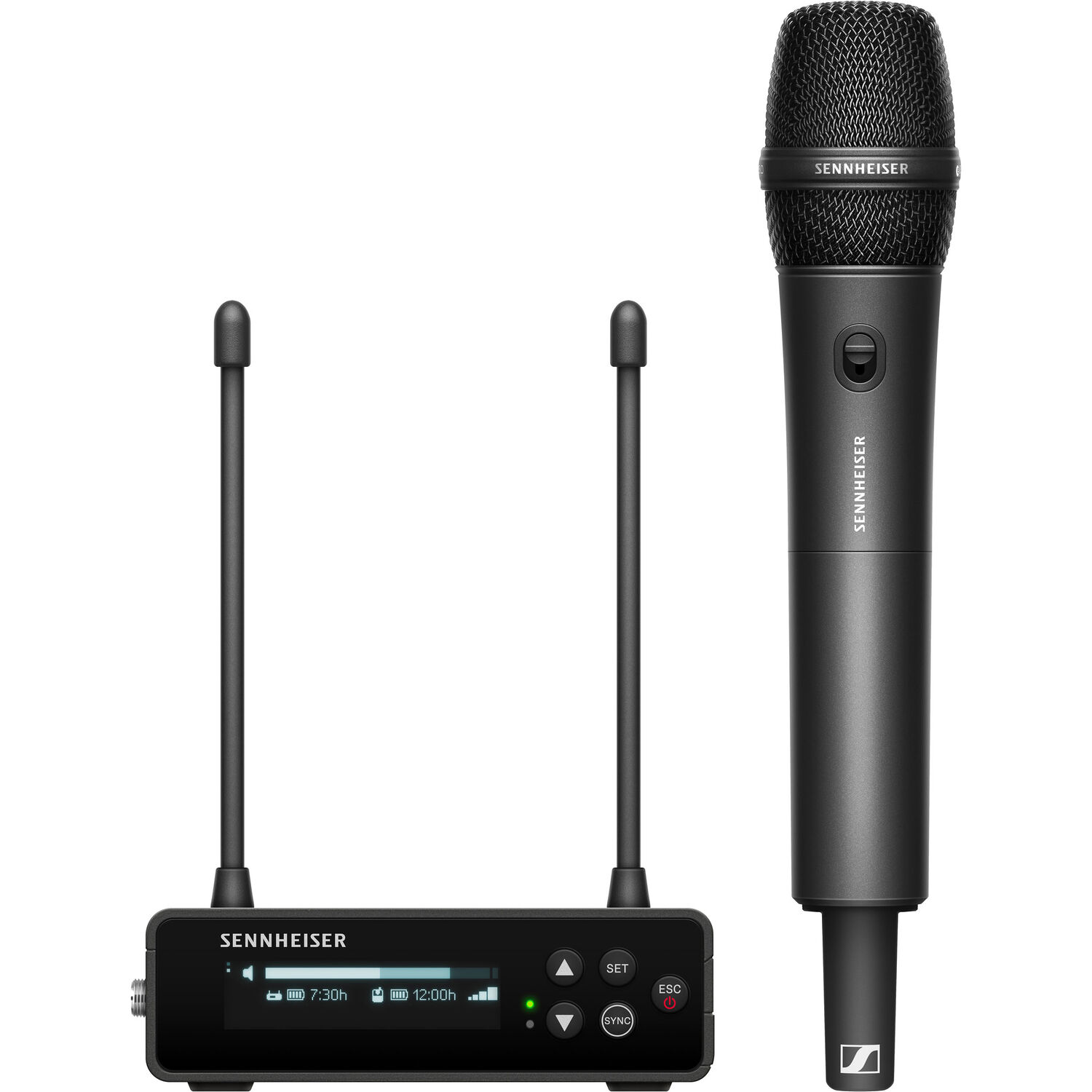

Sennheiser EW-DP 835 SET (S1-7): Professional Wireless Audio, Elevated

The Pinnacle of Wireless Audio Performance

The Sennheiser EW-DP 835 SET (S1-7) is a state-of-the-art wireless microphone system designed to deliver exceptional audio quality and reliable performance. Ideal for broadcast, film, and live sound applications, this set offers unparalleled flexibility and ease of use.

Key Features:

  • Digital Audio Transmission: Ensures crystal-clear audio quality with minimal interference.
  • Wide Frequency Range: Offers a wide range of frequencies for interference-free operation.
  • Long Battery Life: Up to 12 hours of continuous use.
  • Robust Metal Housing: Durable and reliable, even in demanding conditions.
  • Intuitive User Interface: Easy to set up and operate.
  • High-Quality Capsule: Delivers exceptional sound clarity and detail.
  • Advanced RF Technology: Ensures stable and reliable signal transmission.

Key Benefits:

  • Superior Audio Quality: Experience pristine sound reproduction.
  • Reliable Performance: Ensures consistent audio transmission, even in challenging environments.
  • Flexible Operation: Adapt to various applications with ease.
  • Professional-Grade Sound: Achieve broadcast-quality audio.
  • Easy Setup and Use: Quickly and easily set up your wireless system.
  • Durable Construction: Built to withstand the rigors of professional use.

Key Applications:

  • Broadcast Television: Deliver high-quality audio for live broadcasts.
  • Film Production: Capture crystal-clear dialogue and sound effects.
  • Live Sound: Enhance the sound of live performances.
  • Corporate Events: Ensure clear and intelligible speech.
  • Theater and Stage Productions: Deliver professional-grade audio for live performances.

The Sennheiser EW-DP 835 SET (S1-7) is the ultimate choice for professionals who demand the highest level of audio performance, reliability, and flexibility.

View More Sennheiser Products Here

Specifications

Audio link frequency ranges
Q1-6 470.2 – 526 MHz
R1-6 520 – 576 MHz
R4-9 552 – 607.8 MHz
S1-7 606.2 – 662 MHz
S4-7 630 – 662 MHz
S7-10 662 – 693.8 MHz
U1/5 662 – 693.8 MHz
823.2 – 831.8 MHz &
V3-4 925.2 – 937.3 MHz
Y1-3 1785.2 – 1799.8 MHz
Bluetooth® Low Energy (BLE) frequency range 2402 – 2480 MHz
Audio frequency response 20 Hz – 20 kHz (-3 dB)
@ 3 dBfs
Audio THD ≤ -60 dB for 1 kHz
@ -3 dBfs input level
Dynamic range 134 dB
System latency 1.9 ms
Operating temperature -10 °C – +55 °C (14 °F – 131 °F)
Relative humidity 5 – 95 % (non-condensing)
EW-DP EK
Input voltage ~ 1.8 – 4.35 V
Input current Typ. < 250 mA / Max. < 400
mA (BA 70)
Typ. < 400 mA / Max. < 750
mA (2x AA batteries)
< 300 mA@5 V (USB-C
standalone)
Power Supply 2x AA batteries 1.5V or BA70
rechargeable battery pack or
USB-C PD power supply
(max.):
5V / 1500mA
9V / 900mA
12V / 700mA
Transmit power (radiated) BLE: max. 10 mW EIRP
Audio output power < 2 dBV max. (high level) / <
4dBU max (high level)
Headphone Output < 50 mW into 16 Ohms
Dimensions 86 x 67 x 28 mm
(3.39″ x 2.64″ x 1.1″)
Weight (without antennas and power supply) approx. 140g (without power supply) (0.31 lbs)

EW-D SKM-S (Handheld Transmitter)

Input voltage 2.0 – 4.35 V
Input current < 300 mA
Power supply 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied bandwidth 200 kHz
Transmit power (radiated) Audio link: 10 mW ERP
(Range Y1-3: 12 mW ERP)
BLE: max. 10 mW EIRP
Dimensions (ø x l) (incl. MMD 835 microphone module) 50 x 268 mm (1.97″ x 10.55″
(without microphone module)- 40 x 200 mm (1.57″ x 7.87″)
Weight (without batteries) (incl. MMD 835 microphone module) approx. 304 g (0.67 lbs)
(without microphone module) approx. 195 g (7.14 lbs)
MMD 835 (Microphone Module)
Transducer principle dynamic
Sensitivity 2.1 mV/Pa
Sound pressure level 154 dB SPL
Pick-up pattern cardioid

What's In The Box

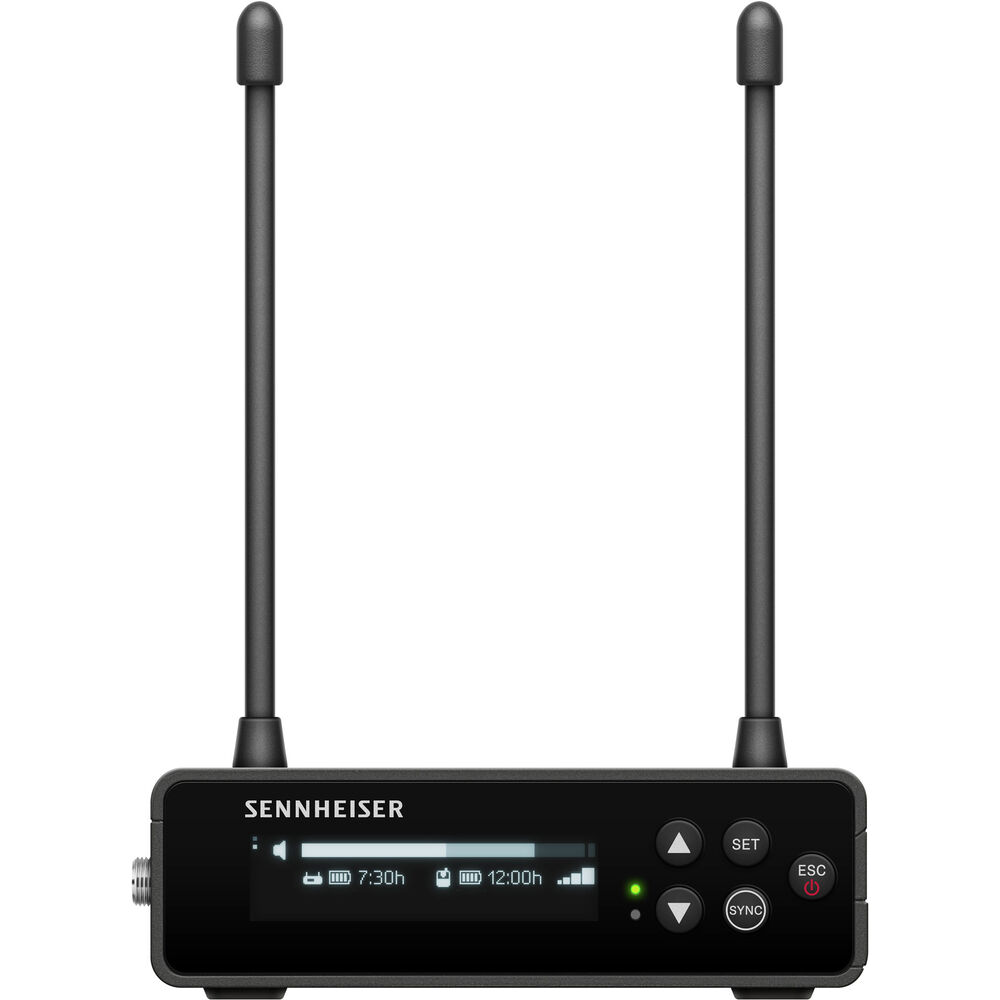

  • 1x EW-DP EK digital portable single channel receiver
  • 1x EW-D SKM-S digital handheld transmitter
  • 1x MMD 835 dynamic cardioid microphone module
  • 1x Mounting kit (Mounting plate, cold shoe, belt clip & screws)
  • 1x BA 70 li-ion battery & (2) AA battery
  • 1x Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
  • 1x Locking 3.5 mm TRS plug to XLR plug cable
  • 1x USB-C charging cable
