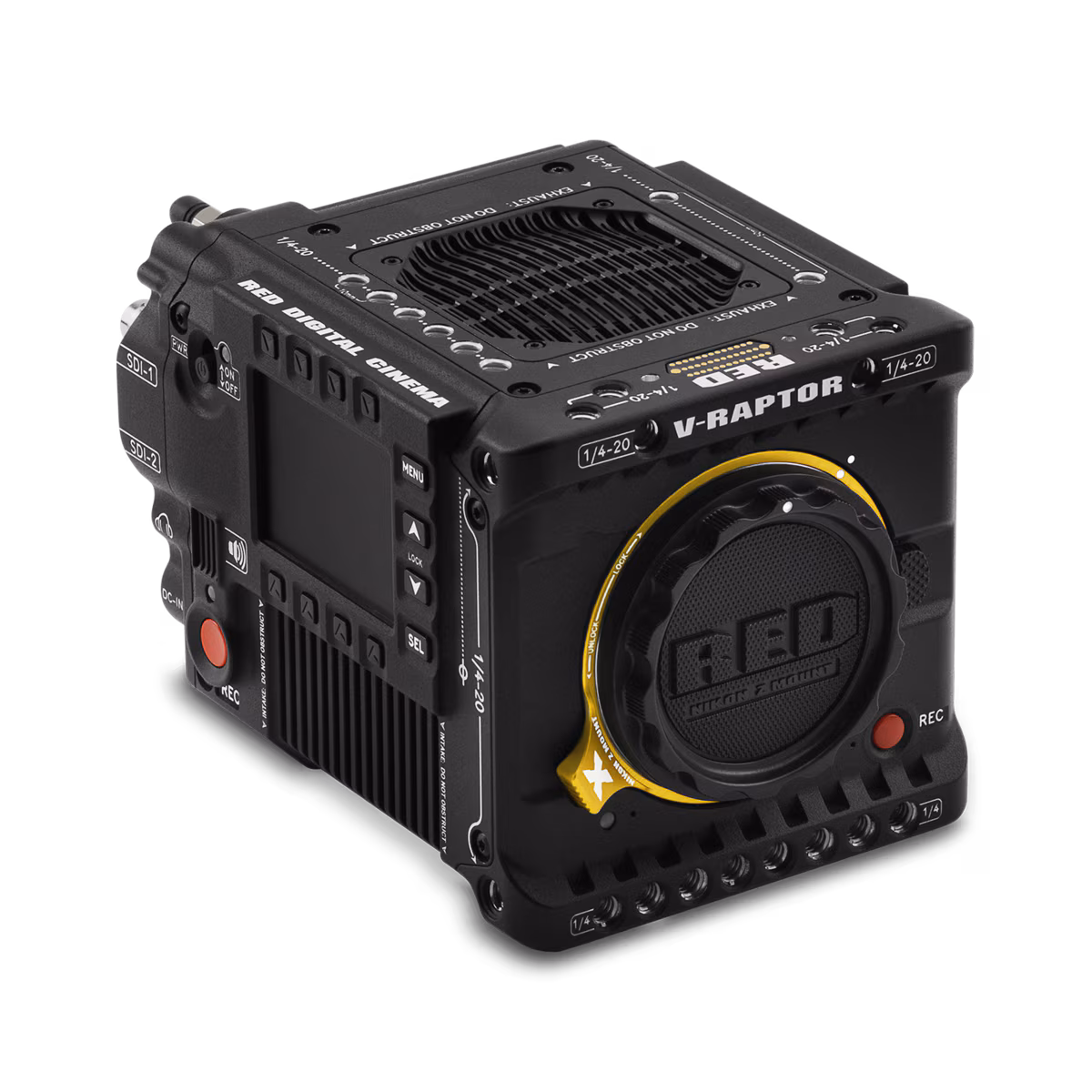

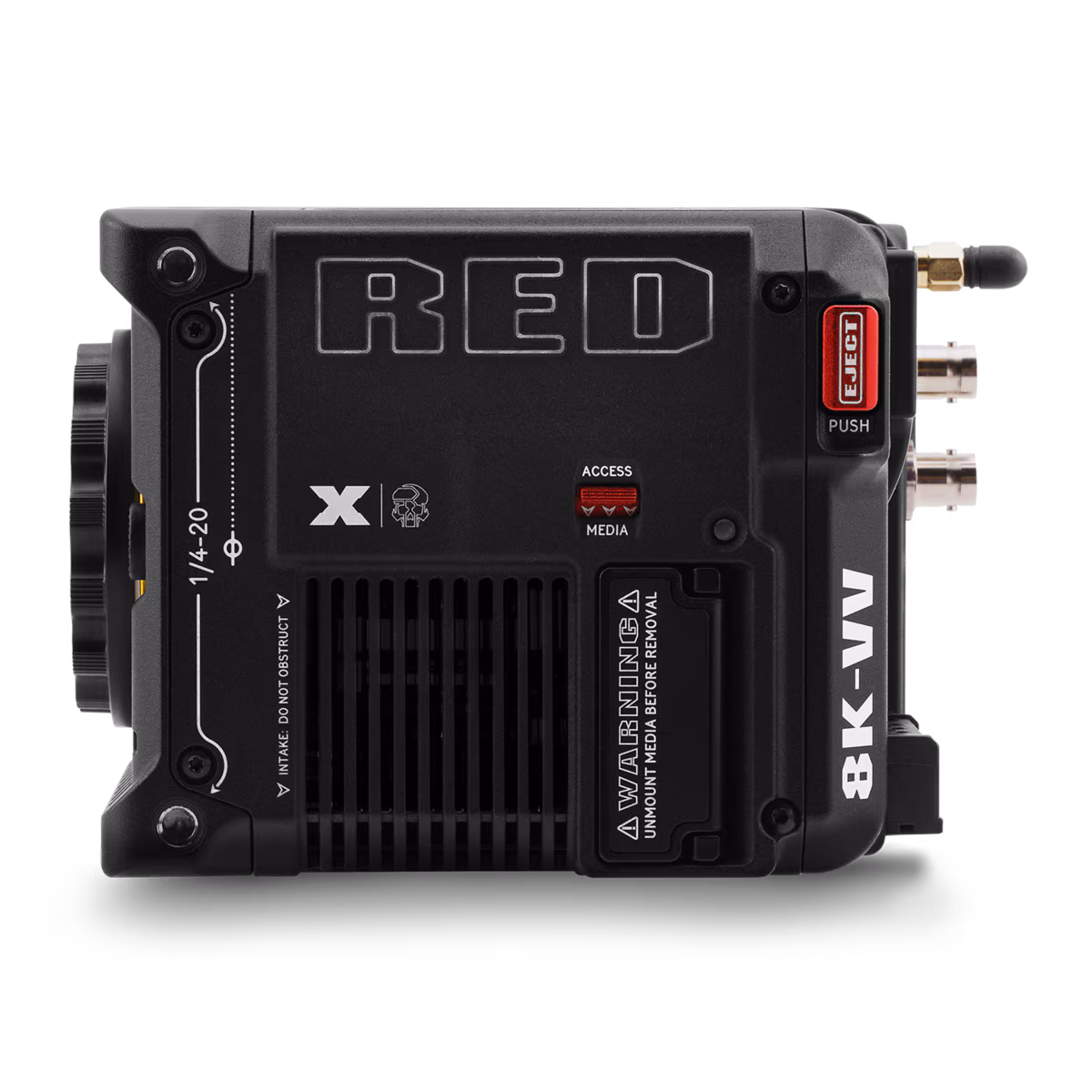

RED V-RAPTOR [X] Z Mount
RED V-RAPTOR [X] Z Mount - Image 2
RED V-RAPTOR [X] Z Mount - Image 3
RED V-RAPTOR [X] Z Mount - Image 4
RED V-RAPTOR [X] Z Mount - Image 5
RED V-RAPTOR [X] Z Mount - Image 6

RED V-RAPTOR [X] Z Mount

R1,000,000.00


SKU: N/A Categories: , Tags: ,

Description

RED V-RAPTOR [X] Z Mount – 8K VV Global Shutter Cinema Camera

The RED V-RAPTOR [X] Z Mount is a next-generation large-format digital cinema camera engineered for high-end narrative filmmaking, commercial production, live broadcast, and virtual production environments. Built around RED’s advanced 8K Vista Vision global shutter sensor and housed within the DSMC3 platform, this configuration pairs uncompromising image fidelity with the versatility of the Nikon Z lens ecosystem.

8K Vista Vision Global Shutter Sensor:
At its core is an 8K VV global shutter CMOS sensor that eliminates rolling shutter artifacts while preserving exceptional dynamic range and highlight detail. Capture full-frame 8K imagery with cinematic depth, refined tonal roll-off, and precise color science — ideal for premium streaming, theatrical release, and VFX-intensive workflows.

High Frame Rate Flexibility:
The V-RAPTOR [X] supports high frame rates across multiple resolutions, enabling smooth slow-motion capture while maintaining full image integrity. Whether shooting action sequences, stylized commercial content, or dynamic handheld footage, the camera delivers consistent motion rendering without skew or distortion.

Nikon Z Mount with Lens Versatility:
The reinforced Z mount provides secure lens attachment with electronic communication, supporting a broad range of Nikon Z lenses. Through compatible adapters, cinematographers can also integrate PL and other professional lens systems, expanding creative control across cinema and hybrid productions.

REDCODE RAW Workflow:
Record in REDCODE® RAW with adjustable compression settings, balancing image quality and storage efficiency. This codec provides extensive latitude for color grading, compositing, and finishing — ensuring maximum control in post-production.

Professional I/O & DSMC3 Integration:
Designed for modern production demands, the V-RAPTOR [X] includes 12G-SDI outputs, timecode, genlock, advanced IP control, and robust power integration within the DSMC3 architecture. This makes it ideal for multi-camera synchronization, LED volume stages, broadcast pipelines, and complex set environments.

Compact, Production-Ready Design:
Despite its large-format sensor and advanced capabilities, the V-RAPTOR [X] maintains a compact, rugged chassis optimized for professional rigging. It integrates seamlessly with gimbals, cranes, drones, studio builds, and handheld configurations.

Key Features:

  • 8K VV Global Shutter Sensor: Large-format capture with zero rolling shutter distortion
  • High Frame Rates: Smooth slow motion across multiple resolutions
  • Nikon Z Mount: Secure, electronically compatible lens interface
  • REDCODE RAW Recording: Advanced compression control for grading flexibility
  • Professional Connectivity: 12G-SDI, timecode, genlock, IP control
  • DSMC3 Modular Platform: Built for cinema, broadcast, and virtual production

The RED V-RAPTOR [X] Z Mount delivers flagship 8K global shutter imaging, professional workflow integration, and flexible lens compatibility — a future-ready cinema camera platform for demanding creative productions.

View More RED DIGITAL CINEMA Products Here

Additional information

SELECT KIT

V-RAPTOR [X], Starter Pack, Production Pack [V Lock]

Specifications

SENSOR TYPE V-RAPTOR® [X] 8K VV 35.4MP Global Shutter CMOS
EFFECTIVE PIXELS 8192 x 4320
SENSOR SIZE 40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
DYNAMIC RANGE 17+ stops
MOUNT TYPE Integrated locking Nikon Z mount with electronic communication
Supports /i PL lenses with RED Z to PL Adapters
Supports Nikon FTZ II Adapter with communication and other adapters based on the Nikon Z mount
MAX DATA RATES Up to 800 MB/s using RED branded or other qualified CFexpress media cards1
REDCODE® RAW MAX FRAME RATES 120 fps at 8K 17:9, 150 fps at 8K 2.4:1
140 fps at 7K 17:9, 175 fps at 7K 2.4:1
160 fps at 6K 17:9, 200 fps at 6K 2.4:1
192 fps at 5K 17:9, 240 fps at 5K 2.4:1
240 fps at 4K 17:9, 300 fps at 4K 2.4:1
320 fps at 3K 17:9, 400 fps at 3K 2.4:1
480 fps at 2K 17:9, 600 fps at 2K 2.4:1
BEST AVAILABLE REDCODE® SETTINGS REDCODE HQ, MQ, LQ, and ELQ at 8K 17:9 up to 60 fps
REDCODE LQ and ELQ at 8K 17:9 up to 120 fps
REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 up to 96 fps
REDCODE MQ, LQ, and ELQ at 6K 17:9 up to 160 fps
REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 up to 240 fps
REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 up to 480 fps
REDCODE® RAW
ACQUISITION FORMATS		 8K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
7K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
6K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
5K 17:9, 2:1, 2.4:1, 16:9, 1:1
4K 17:9, 2:1, 2.4:1, 16:9, 1:1
3K 17:9, 2:1, 2.4:1, 16:9, 1:1
2K 17:9, 2:1, 2.4:1, 16:9, 1:1
APPLE PRORES Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K (4096×2160) 120P
Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) up to 60P.
CONSTRUCTION Aluminum Alloy
DIMENSIONS 149.63 mm x 115.5 mm x 108 mm / 5.9 in. x 4.5 in. x 4.3 in. (LxWxH, largest fixed dims.)
WEIGHT 4.03 lbs / 1.83 kg (without body cap and CFexpress card)
MEDIA TYPE CFexpress Type B
BATTERY TYPE Integrated V-Lock battery interface optimized for Micro V-Lock Batteries1
DC POWER INPUT 11-17 V via 6-Pin DC-IN
OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE –20°C to 50°C (–4°F to 122°F)
STORAGE RELATIVE HUMIDITY 0% to 85% non-condensing
RED GLOBAL VISION Extended Highlights capability to capture more detail and color in extreme dynamic range scenarios.
Phantom Track recording mode to capture multiple LED instances as dedicated clips.
COLOR MANAGEMENT Image Processing Pipeline 2 (IPP2)
Supports 33×33×33 3D LUTs
Supports import and adjustment of CDLs
AUDIO Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz
3.5mm stereo headphone port
AUTOFOCUS Phase Detect with Face Detection
IP CONNECTED Compatible with the RED Connect Module for live 8K R3D video over IP or live 4K over SMPTE ST 2110.
Dual band Wi-Fi (2.4 GHz or 5 GHz) for wireless camera control, live preview, and direct Camera to Cloud workflow via FrameIO or Amazon S3
Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing remote camera control, live MJPEG preview video feed and remote media offload
Wired control via USB-C or Ethernet (compatible USB-C to Ethernet adapter1 required) for remote camera control, live preview, direct Camera to Cloud workflow and high speed remote media offload
MONITOR OUTPUTS Proprietary Top Accessory Port for Monitoring and Control
Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
MONITOR OPTIONS DSMC3 RED Touch 7.0” LCD
RED Compact EVF with DSMC3 Adapter A
Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
Integrated 2.4″ LCD for camera control (no preview video)
ADDITIONAL I/O Tri-Level Genlock Input via 9-Pin EXT
LTC Timecode Input via 9-Pin EXT
RS232 CTRL (using RCP2) via 9-Pin EXT
RED CONTROL & RED CONTROL PRO Access full camera controls and live preview from iOS or Android devices
Pro App: Operate one or multiple cameras over an IP connection to synchronize settings, manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location.
Standard app available from the Apple App Store and Google Play Store.
RED Control Pro available via Apple App store only and requires additional purchase.
RED Control works wirelessly or wired via USB-C

What's In The Box Base Kit

  • V-RAPTOR [X] Z Mount Camera
  • DSMC AC Power Adaptor 150W
    • NOTE: POWER CORD NOT INCLUDED – MUST PURCHASE SEPARATELY.
  • RED Logo Sticker
  • V-RAPTOR [X] Information Card (incl. registration and support info)
  • 2 Year Standard Warranty

What's In The Box Starter Pack

  • 1x V-RAPTOR [X] Z Mount Camera
    • NOTE: POWER CORD NOT INCLUDED – MUST PURCHASE SEPARATELY.
  • 1x DSMC3 RED Touch 7.0” LCD
  • 1x RED PRO CFexpress v4 Type B 2TB
  • 1x RED PRO CFexpress v4 Type B Card Reader
  • 2x REDVOLT MICRO-V
  • 1x Compact Dual V-Lock Charger
    • NOTE: POWER CORD NOT INCLUDED – MUST PURCHASE SEPARATELY.
  • 2x V-RAPTOR Wing Grip
  • 1x RED EXT-to-Timecode Cable 3′
  • V-RAPTOR [X] Information Card (incl. registration and support info)
  • 2 Year Standard Warranty

What's In The Box Production Pack (V Lock)

  • 1x V-RAPTOR [X] Z Mount Camera
    • NOTE: POWER CORD NOT INCLUDED – MUST PURCHASE SEPARATELY.
  • 1x DSMC3 RED Touch 7” LCD
  • 2x RED PRO CFexpress v4 Type B 2TB
  • 1x RED PRO CFexpress v4 Type B Card Reader
  • 4x REDVOLT MICRO-V (V-Lock Variant Only)
  • 1x Compact Dual V-Lock Charger
    • NOTE: POWER CORD NOT INCLUDED – MUST PURCHASE SEPARATELY.
  • 1x V-RAPTOR Tactical Top Plate w/ Battery Adapter Plus (V-Lock)
  • 1x V-RAPTOR Top Handle w/ Extensions
  • 1x V-RAPTOR Expander Blade
  • 1x V-RAPTOR Quick Release Platform Pack
  • 1x DSMC3 RED 5-Pin to Dual XLR Adapter
  • 1x RED Production Grips (set of 2)
  • 1x V-RAPTOR Side Ribs
  • 1x V-RAPTOR Production Plates
  • 2 Year Standard Warranty (camera only)
