iFootage Gazelle TC6S Uprise Tripod with Komodo K7 Fluid Head Bundle

R13,895.00

SKU: TC6S+K7 Category: Tag:

Description

iFootage Gazelle TC6S Uprise Tripod with Komodo K7 Fluid Head Bundle

The iFootage Gazelle TC6S Uprise Tripod with Komodo K7 Fluid Head Bundle is an advanced, heavy-duty camera support system meticulously designed for professional videographers, cinematographers, and broadcast crews working with heavier rig configurations. Built around the lightweight yet resilient carbon fiber legs of the TC6S Uprise, this system features a rigid 3-section layout capable of handling a total structural payload of 8kg (17.64 lb) while keeping the legs highly portable at just 1.91 kg (4.21 lb). The defining advantage of the Uprise series is its innovative, detachable center column fitted with a quick-leveling mechanical bowl, allowing shooters to quickly cycle between a towering maximum extension of 165 cm (65″) down to an ultra-low perspective of 19.5 cm (7.7″) for extreme low-angle tracking shots. The legs adjust independently via single-handed, ergonomic metal buckles to fixed angles of 22°, 55°, and 80°, and are finished with smart, multi-purpose feet featuring retractable rubber pads that screw upward to uncover heavy-duty stainless steel spikes for absolute grip on slick or uneven outdoor terrain. Crowning this elite platform is the professional-tier iFootage Komodo K7 Fluid Head, a precision CNC-machined anodized aluminum head that drastically steps up system performance with a robust 7kg (15.43 lb) maximum payload capacity. Engineered for cinematic motion control, the K7 head utilizes continuous fluid damping to produce exceptionally smooth, jitter-free pans and tilts, backed by independent locking levers and an incremental 4-step plus zero dynamic counterbalance system rated up to 5kg (11 lb) for flawless payload balancing. The head is detailed with dual rosette mounts to accommodate the fully adjustable, foam-gripped telescoping pan bar on either side, a built-in horizon bubble level, a highly secure drop-in quick release plate offering over 3 inches of sliding travel range, and an offset, thin-profile frontal design engineered specifically to afford ample physical clearance for thick, large-diameter cinema lenses attached to compact full-frame mirrorless or cinema camera bodies.

View More iFootage Products Here

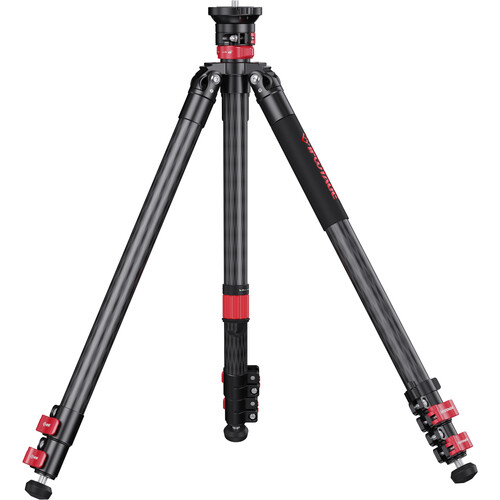

Specifications for the iFootage Gazelle TC6S

Head Mount Type
75 mm Bowl
Primary Material
Carbon Fiber
Maximum Working Height
64.96″ / 165 cm
Minimum Working Height
7.7″ / 19.5 cm
Closed Length
25.00″ / 63.5 cm
Weight
4.21 lb / 1.91 kg
Legs
Head Mount Type
75 mm Bowl
Primary Material
Carbon Fiber
Leg Lock
Lever Lock
Leg Sections
3
Independent Leg Spread
Yes
Leg Positions
3 Positions
Foot Features
Retractable, Spiked
General
Maximum Working Height
64.96″ / 165 cm
Center Column
Yes: Removable
Minimum Working Height
7.7″ / 19.5 cm
Closed Length
25.00″ / 63.5 cm
Bubble Level
Yes
Weight
4.21 lb / 1.91 kg
Packaging Info
Package Weight
6.56 lb
Box Dimensions (LxWxH)
29.5 x 6.3 x 6.2″

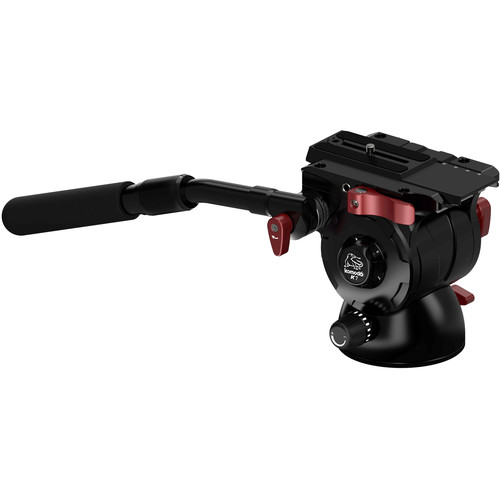

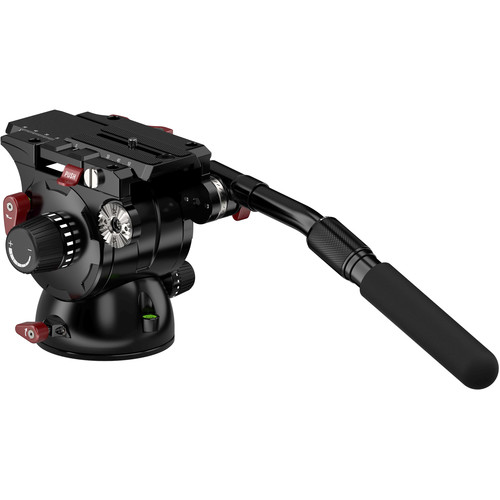

Specifications for the iFootage Komodo K7 Fluid Head

Camera Mounting
1/4″-20 Screw (Quick Release w/ Sliding Balance Plate)
Head Type
Fluid Head
Drag Control
Yes
Load Capacity
15.43 lb / 7 kg
Weight
4.3 lb / 1.95 kg
Head
Camera Mounting
1/4″-20 Screw (Quick Release w/ Sliding Balance Plate)
Head Type
Fluid Head
Base Mount
Flat Base with 3/8″-16 Female
Counter Balance
Incremental 4-Step Plus 0 (11.02 lb / 5 kg)
Dimensions
Base Diameter: 3.62″ / 92.00 mm
Pan & Tilt
Drag Control
Yes
Independent Pan Lock
Yes
Independent Tilt Lock
Yes
Vertical Tilt
+90° to -70°
Lateral Tilt
No
General
Load Capacity
15.43 lb / 7 kg
Accessory Mounting
2x Pan Handle Fitting
Bubble Level
Yes
Weight
4.3 lb / 1.95 kg
Packaging Info
Package Weight
5.94 lb
Box Dimensions (LxWxH)
12.9 x 7.4 x 6.3″

What's In The Box

  • iFootage Gazelle TC6S Uprise Tripod (Carbon Fiber)
  • Snap-On Allen Wrench
  • Limited 1-Year Manufacturer Warranty



  • iFootage Komodo K7 Fluid Head
  • Pan Handle
  • Quick Release Plate
  • Limited 1-Year Manufacturer Warranty
