Godox KNOWLED AM800R RGB Inflatable LED Light Mat (4 x 4′)
The Godox KNOWLED AM800R RGB Inflatable LED Light Mat is a powerful, highly flexible full-spectrum LED soft lighting solution engineered for filmmakers, gaffers, and broadcast crews who require ultra-soft, continuous illumination in a compact 4 x 4′ form factor. Delivering 800W of total fixture output, the AM800R features a rapid-deploy inflatable airframe that inflates in about a minute without requiring heavy overhead trussing. Built with an IP65 weather-resistance rating and reinforced carbon fiber backing, it offers top-tier lighting performance in studio environments and demanding on-location shoots.
High Output with Exceptional Color Accuracy
The AM800R delivers continuous, flicker-free soft light with outstanding color fidelity, rendering faithful skin tones and vivid hues. With a CRI of 96 and a TLCI of 98, it ensures scene details and product colors remain exact and natural straight out of camera. Its 800W COB LED matrix provides high-intensity output, acting as a soft key, ambient overhead fill, or versatile studio accent.
Full RGB Color and Creative FX Modes
Offering full-spectrum RGBW color mixing, the AM800R allows precise management across six operating modes: CCT, HSI, RGBW, GEL, XY, and FX. Integrated green/magenta adjustment (-100 to +100%) lets gaffers quickly balance color temperature spikes from practical lights or mixed ambient conditions.
Ultra-Wide CCT Range for Professional Color Matching
With a wide CCT range spanning 1800K to 10,000K, the AM800R smoothly transitions between tungsten warmth and cool daylight. Precision dimming controls enable fine adjustments from 0 to 100% across four selectable dimming curves.
Rapid Airframe Deployment & Versatile Mounting

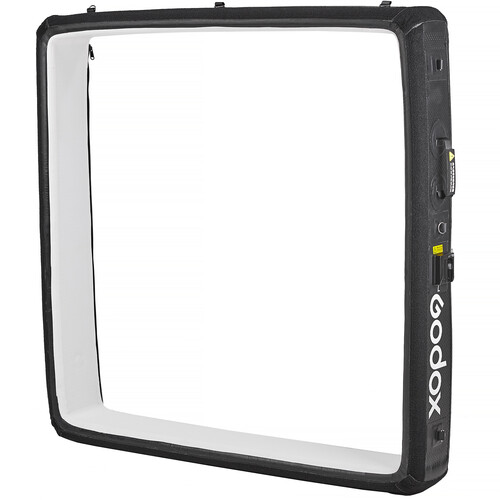

The inflatable frame inflates to 8 PSI in about a minute using the included electric pump and retains its shape for up to 15 days. Featuring a carbon fiber backplate for reduced deformation stress and a foldable 300° U-type yoke mount, it supports stand mounting, boom arm rigging, or floor positioning without bulky trussing.
Professional Studio Connectivity & IP65 Rating
Engineered for advanced production workflows, both the light panel and controller feature a fully sealed IP65 rating for all-weather reliability.
-
Console Connectivity: Wired DMX512, RDM, LumenRadio CRMX, and Ethernet (Art-Net & sACN)
-
Wireless Control: Bluetooth via the Godox Light App and Godox KNOWLED App up to 60 meters
-

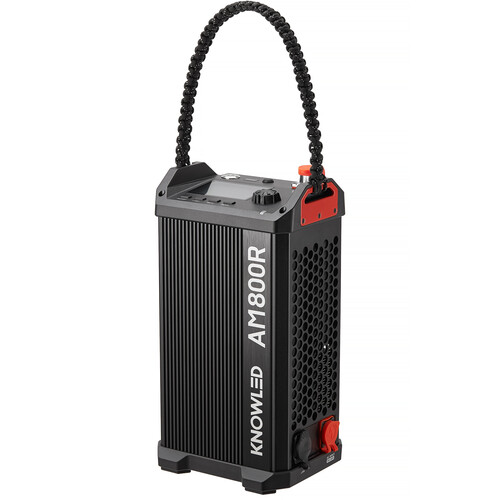

Onboard Interface: Controller box with integrated display and NFC one-tap pairing
The Godox KNOWLED AM800R RGB Inflatable LED Light Mat is a versatile, high-output soft light that brings rapid deployment, professional color science, and all-weather durability to demanding sets.
