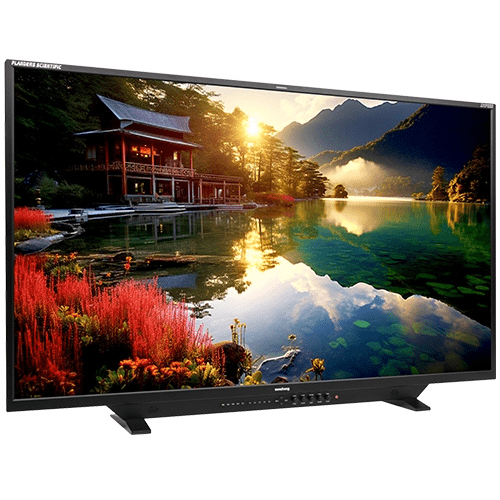

Flanders Scientific XMP550 Monitor

  • 55″ UHD HDR Monitor
  • 3840 x 2160 Resolution
  • Quantum Dot OLED Panel
  • 2000 nit Brightness
  • 4 million:1 Contrast Ratio
  • 99% of DCI-P3 and Wider Colour Space
  • 12G/6G/3G/HD-SDI Inputs & Outputs
  • Clean Loop & Processed Loop Outputs
SKU: XMP550 Categories: , Tag:

Description

Flanders Scientific XMP550 Monitor

The XMP550 is a 55″ UHD resolution HDR and SDR reference mastering monitor built around a groundbreaking new QD-OLED panel featuring 2,000nits peak luminance, 4,000,000:1 contrast, and our widest color gamut to date.

The XMP550 qualifies as a Dolby Vision mastering monitor finally bringing an end to the days of compromising between smaller reference grade HDR displays and larger non-reference client displays. The XMP550 delivers the best of both worlds with truly reference grade performance and professional connectivity in a form factor large enough for both the colorist and clients to view.

Display:

  • Screen Size: 55″ diagonal
  • Resolution: 3840 x 2160 UHD
  • Panel Type: Quantum Dot OLED
  • Brightness: 2,000 nits peak luminance
  • Contrast Ratio: ~4,000,000:1
  • Color Gamut: 99.99% of DCI-P3 and wider
  • Viewing Angle: 179°

Connectivity

  • Inputs: 4 x 12G/6G/3G/HD-SDI BNC (clean loop, processed loop)
  • Outputs: 4 x 12G/6G/3G/HD-SDI BNC (clean loop, processed loop)
  • Other: DisplayPort, USB-C

Features

  • Direct Connect Volumetric AutoCal for fast and accurate calibration
  • HDR False Color and Focus Peaking
  • 3D LUT support
  • Dolby Vision mastering capabilities
  • Built-in speakers
  • VESA mountable

View More Flanders Scientific Inc. Products Here

Specifications

Panel Specifications
Screen Size 55″ Diagonal
Resolution 3840×2160
Bit Depth (Color) 10bit (1.073 Billion Colors)
Contrast Ratio ~4,000,000:1
Panel Type Quantum Dot OLED
Pixel Efficiency 99.99%
Max Luminance ~2000cd/m 2 @ L20
Viewing Angle 179°
Maximum Native Color Gamut
Max Native Color Gamut
Inputs
4 x BNC 12G/6G/3G/HD-SDI
Outputs
4 x BNC 12G/6G/3G/HD-SDI – Clean Loop
4 x BNC 6G/3G/HD-SDI – Processed Loop
Supported SDI Formats
SMPTE-274M 1080i (60/59.94/50)
1080p (30/29.97/25/24/24PsF/23.98/23.98PsF)
SMPTE-296M 720p (60/59.94/50/30/29/25/24/23.98)
2K 2048×1080
(30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF)
SMPTE-425M-AB
– Level A & Level B supported
– Level B supports 2 x SMPTE
292M image format mapping
372M image format mapping
– RGB, YCbCr, & XYZ supported
12 & 10bit 4:2:2 1920x1080p (60/59.94/50)
4:4:4 1280x720p (60/59.94/50/30/29.97/25/24/23.98)
12 & 10bit 4:4:4 1920x1080i (60/59.94/50)
12 & 10bit 4:4:4 1920x1080p (30/29.97/25/24/23.98 + PsF variations)
12 & 10bit 2k (2048×1080)p (30/29.97/25/24/23.98 + PsF variations)
12 & 10bit 2K (2048×1080)p (60/59.94/50/48/47.95)
4K & UHD (ST2081 & ST2082)
Single-Link 12G
Single-Link 6G
Dual-Link 6G
Dual-Link 3G Square Division
Quad-Link 3G Level A Square Division
Quad-Link 3G Level B Square Division
Quad-Link 1.5G Square Division
10 & 8bit 4:2:2 4096x2160p (60/59.94/50/48/47.95/30/29.97/25/24/23.98)
10 & 8bit 4:2:2 3840x2160p (60/59.94/50/48/47.95/30/29.97/25/24/23.98)
12 & 10bit 4:4:4 4096x2160p (30/29.97/25/24/23.98) YCbCr & RGB
12 & 10bit 4:4:4 3840x2160p (30/29.97/25/24/23.98) YCbCr & RGB
Audio
Internal Speakers 2
Audio In (Mini-Jack) 1
Audio Out (Mini-Jack) 1
Features
Desktop Stand Standard
Wall Mountable Yes – 300x200mm VESA
Color Space Selection SMPTE C/EBU/REC709/DCI-P3/Rec2020*/Custom
*covers ~90% of Rec2020 color gamut
Direct Connect Volumetric AutoCal Compatible with CR100
*additional probe support under evaluation
Power
AC Input IEC / C14
Power Requirement 100~240 VAC
Power Consumption (Appx.) 75W – 325W
Physical Characteristics
Weight 43 lbs (19.5 Kg)
Chassis Aluminum Frame
