Flanders Scientific DM242

Key Features:

  • Superior Contrast
  • 10-bit Panel
  • Real-Time Waveform and Vectorscope
  • Advanced Color Fidelity Engine (CFE3)
  • Multiple Input/Output Options
  • Durable All-Metal Chassis
  • Ergonomic Design
SKU: DM242 Category: Tag:

Description

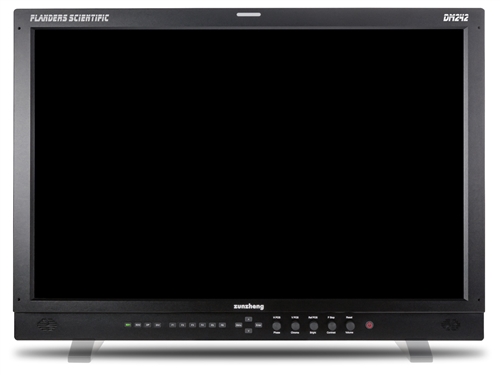

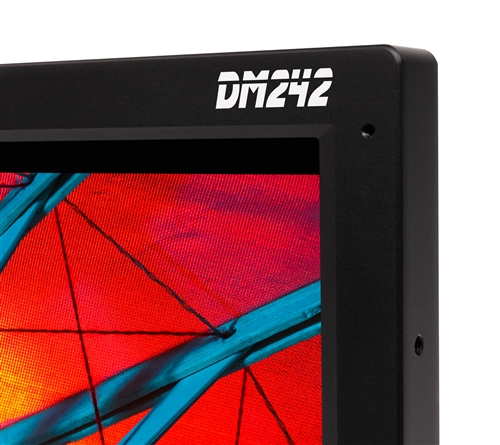

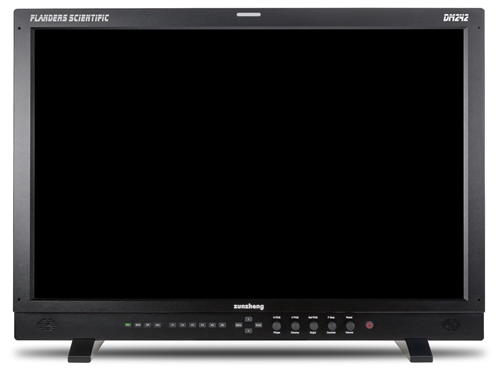

Flanders Scientific DM242: Reference-Grade LCD Monitoring

The DM242 is a true successor to our bestselling DM240 and DM241 monitors, featuring 20% higher contrast than the DM240 and 63% higher contrast than the DM241.

With a 10-bit panel, the ability to warm up and stabilize almost instantaneously, and a durable all-metal chassis, the DM242 is well-suited to fast-paced and color-critical applications in production, post-production, and broadcast environments.

Key Features:

  • Superior Contrast: 20% higher contrast than the DM240 and 63% higher contrast than the DM241.
  • 10-bit Panel: Delivers smooth gradations and accurate color reproduction.
  • Real-Time Waveform and Vectorscope: Monitor and analyze your video signals in real time.
  • Advanced Color Fidelity Engine (CFE3): Ensures accurate color representation.
  • Multiple Input/Output Options: Supports a wide range of video formats and connections.
  • Durable All-Metal Chassis: Built to last in demanding professional environments.
  • Ergonomic Design: Optimizes viewing comfort and reduces eye strain.

Key Benefits:

  • Accurate Color Reproduction: Ensure consistent and reliable color across different devices and workflows.
  • Enhanced Image Quality: Experience sharper images with improved contrast and detail.
  • Efficient Workflow: Real-time monitoring and analysis tools save time and effort.
  • Reliable Performance: Built to withstand the rigors of professional use.
  • Flexible Connectivity: Easily connect to a variety of devices and sources.

Key Applications of the Flanders Scientific DM242:

The DM242 is a versatile reference monitor, suitable for a wide range of professional applications. Here are some key applications:

  • Post-Production: For color grading, editing, and visual effects work.
  • Broadcast and Television: Monitoring live feeds, editing, and mastering.
  • Photography: Reviewing and editing images with accurate color representation.
  • Film and Video Production: Ensuring consistent color and image quality throughout the production process.
  • Digital Signage and Content Creation: Creating high-quality content for digital displays.

By combining exceptional image quality, advanced features, and a durable design, the DM242 empowers professionals to achieve the highest standards in their work.

The DM242 is the ideal choice for professionals who demand the highest level of image quality and performance.

View More Flanders Scientific Monitors Here

Specifications

Panel Specifications
  • Screen Size: 24″
  • Resolution: 1920×1200
  • Bit Depth (Color): 10bit (1.073 Billion Colors)
  • Contrast Ratio – 1800:1
  • Backlight: Wide Gamut W-LED
  • Pixel Efficiency: 99.999%
  • Max Luminance: 400nits
  • Viewing Angle: 179°
Maximum Native Color Gamut
  • Max Native Color Gamut
Inputs
  • 1 x DVI-D
  • DVI Digital
  • 2 x BNC
  • 3Gbps/HD/SD-SDI
  • 1 x DP
  • DisplayPort
Outputs
  • 2 x BNC
  • 3Gbps/HD/SD-SDI
  • 2 x BNC
  • 2nd Monitor Outputs (Can Mirror On Screen View, Apply LUT, etc.)
Supported SDI Formats
  • ITU-R BT.656 (PAL)
  • 576i (50)

SMPTE-125M

  • 480i (59.94)

SMPTE-274M

  • 1080i (60/59.94/50)
    1080p (30/29.97/25/24/24PsF/23.98/23.98PsF)

SMPTE-296M

  • 720p (60/59.94/50/30/29/25/24/23.98)

2K

  • 2048×1080 (30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF)

SMPTE-372M

  • 1080p (50/59.94/60) 4:2:2 YCbCr, RGB
    1080i (29.97/25/24/23.98) 4:4:4 YCbCr, RGB
    1080p (30/29.97/25/24/23.98) 4:4:4 YCbCr, RGB
    720p (60/59.94/50) 4:4:4 YCbCr, RGB

SMPTE-425M-AB

  • Level A & Level B supported
  • Level B supports 2 x SMPTE
  • 292M image format mapping
  • 372M image format mapping
  • RGB, YCbCr, & XYZ supported
  • 12 & 10bit 4:2:2 1920x1080p (60/59.94/50)
  • 4:4:4 1280x720p (60/59.94/50/30/29.97/25/24/23.98)
  • 12 & 10bit 4:4:4 1920x1080i (60/59.94/50)
  • 12 & 10bit 4:4:4 1920x1080p (30/29.97/25/24/23.98 + PsF variations)
  • 12 & 10bit 2k (2048×1080)p (30/29.97/25/24/23.98 + PsF variations)
  • 12 & 10bit 2K (2048×1080)p (60/59.94/50/48/47.95)
    *XYZ mapped to Selected Color Gamut on Color Management Menu
Supported DVI Formats
  • DVI-Digital
  • VGA (640×480), NTSC (720×480), SVGA (800×600), XGA (1024×768), SXGA (1280×1024), 1280×720, 1440×900, 1920×1080
Audio
  • Audio Disembedding: Yes
  • Audio Level Meters: Yes
  • Internal Speakers: 2
  • Audio In (Mini-Jack): 1
  • Audio Out (Mini-Jack): 1
Features
  • Rack Mount Kit (Optional)
  • Removable Desktop Feet (Standard)
  • External Mounting Points: 100mm VESA
  • VESA to Light Stand Mount: Optional
  • Clear Protective Cover: Optional
  • Scopes: Yes
  • Measurement Function: Yes
  • Timecode Display (SD/HD-SDI)
  • LTC, VITC 1, VITC 2
  • 1:1 Pixel Mapping: Yes
  • Blue Only & Mono Mode: Yes
  • Side by Side Monitoring: Yes
  • 3D LUT Color Space Selection
  • SMPTE C/EBU/REC709/REC2020 Emulation/DCI P3/USER
  • Color Temperature Select: 3200K, 5000K, 5600K, 6500K, 9300K
  • Gamma Selection: 1.0 / 1.8 / 2.0 / 2.2 / 2.35 / 2.4 / 2.6 / 2.8
Power
  • AC Input
  • IEC / C14
  • DC Input
  • 4 PIN XLR
  • Battery Plate: Optional
Power Requirement
  • 100~240 VAC / 12~24 VDC
DC Power Consumption (Appx.)
  • 23W @ 100nit / 35W Max
Physical Characteristics
  • Weight (without desktop feet): 13.4 lbs (6 kg)
Weight with desktop feet
  • 14.2 lbs (6.4 kg)
  • Chassis
  • Aluminum Frame
  • Dimensional Drawing: PDF
