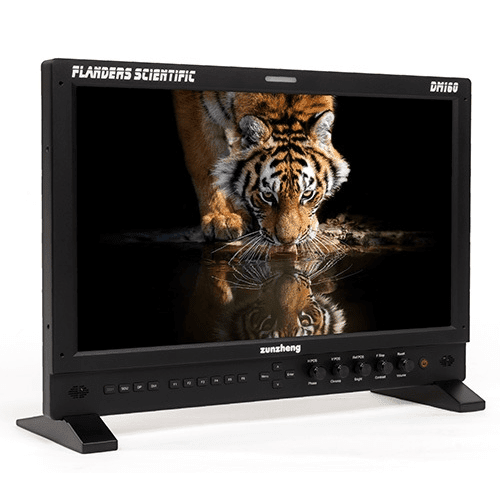

Weighing in at just 5.8lbs (2.6kg) the DM160 is an extremely lightweight, high-contrast 16″ OLED monitor designed for use in color critical production, post, and broadcast applications. Industry leading fast mode processing, a durable all metal chassis, our most advanced feature set, and a compact form-factor make the DM160 an exceptional reference grade monitoring solution for any environment.
| Panel Specifications | |
| Screen Size | 15.6″ |
| Resolution | 1920 x 1080 |
| Bit Depth (Color) | 10-bit OLED (1.073 Billion Colors) |
| Contrast Ratio | 1,000,000:1 |
| Backlight | RGB OLED |
| Pixel Efficiency | 99.99% |
| Max Luminance | 400nits fullscreen |
| Viewing Angle | 179° |
| Maximum Native Color Gamut | |
| Max Native Color Gamut |  |
| Inputs | |
| 1 x DVI-D | DVI Digital |
| 2 x BNC | 3Gbps/Dual-Link/HD/SD-SDI |
| 1 x DP | Display Port |
| Outputs | |
| 2 x BNC | 3Gbps/Dual-Link/HD/SD-SDI |
| 2 x BNC | 2nd Monitor Outputs (Can Mirror On Screen View, Apply LUT, etc.) |
| Supported SDI Formats | |
| ITU-R BT.656 (PAL) | 576i (50) |
| SMPTE-125M | 480i (59.94) |
| SMPTE-274M | 1080i (60/59.94/50) 1080p (30/29.97/25/24/24PsF/23.98/23.98PsF) |
| SMPTE-296M | 720p (60/59.94/50/30/29/25/24/23.98) |
| 2K | 2048×1080 (30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF) |
| SMPTE-372M | 1080p (50/59.94/60) 4:2:2 YCbCr, RGB 1080i (29.97/25/24/23.98) 4:4:4 YCbCr, RGB 1080p (30/29.97/25/24/23.98) 4:4:4 YCbCr, RGB 720p (60/59.94/50) 4:4:4 YCbCr, RGB |
| SMPTE-425M-AB – Level A & Level B supported – Level B supports 2 x SMPTE 292M image format mapping 372M image format mapping – RGB, YCbCr, & XYZ supported | 12 & 10bit 4:2:2 1920x1080p (60/59.94/50) 4:4:4 1280x720p (60/59.94/50/30/29.97/25/24/23.98) 12 & 10bit 4:4:4 1920x1080i (60/59.94/50) 12 & 10bit 4:4:4 1920x1080p (30/29.97/25/24/23.98 + PsF variations) 12 & 10bit 2k (2048×1080)p (30/29.97/25/24/23.98 + PsF variations) 12 & 10bit 2K (2048×1080)p (60/59.94/50/48/47.95) *XYZ mapped to Selected Color Gamut on Color Management Menu |
| Supported DVI Formats | |
| DVI-Digital | VGA (640×480), NTSC (720×480), SVGA (800×600), XGA (1024×768), SXGA (1280×1024), 1280×720, 1440×900, 1920×1080 |
| Audio | |
| Audio Disembedding | Yes |
| Audio Level Meters | Yes |
| Internal Speakers | 2 |
| Audio In (Mini-Jack) | 1 |
| Audio Out (Mini-Jack) | 1 |
| Features | |
| Rack Mount Kit | Included |
| Removable Desktop Feet | Standard |
| External Mounting Points | 100mm VESA |
| VESA to Light Stand Mount | Optional |
| Carrying Bag with Integrated Hood | N/A |
| Clear Protective Cover | Optional |
| 18 Mode Scopes | Yes |
| Measurement Function | Yes |
| Timecode Display (SD/HD-SDI) | LTC, VITC 1, VITC 2 |
| Color Fidelity Engine | Yes, CFE3 |
| 1:1 Pixel Mapping | Yes |
| Blue Only & Mono Mode | Yes |
| Side by Side Monitoring | Yes |
| 3D LUT Color Space Selection | SMPTE C/EBU/REC709/Rec2020 Emulation/DCI-P3/USER |
| Color Temperature Select | 3200K, 5000K, 5600K, 6500K, 9300K |
| Gamma Selection | 1.0 / 1.8 / 2.0 / 2.2 / 2.35 / 2.4 / 2.6 / 2.8 |
| Power | |
| AC Input | 100~240 VAC External Power Supply Included |
| DC Input | 4 PIN XLR |
| Battery Plate | Optional |
| Power Requirement | 100~240 VAC / 12-24 VDC |
| DC Power Consumption (Appx.) | 17W Normal Mode, 25W Outdoor Mode |
| Physical Characteristics | |
| Weight (without Desktop Feet) | 5.8 lbs (2.6 Kg) |
| Weight with Desktop Feet | 6.4 lbs (2.9 Kg) |
| Chassis | Aluminum Frame |
