Eizo ColorEdge Prominence CG1 Monitor

Key Features:

  • True HDR Performance
  • DCI 4K Resolution
  • Wide Color Gamut
  • Built-in Calibration Sensor
  • Multiple HDR and SDR Presets
  • Advanced Connectivity
  • SMPTE ST 2110 Support
Category: Tag:

Description

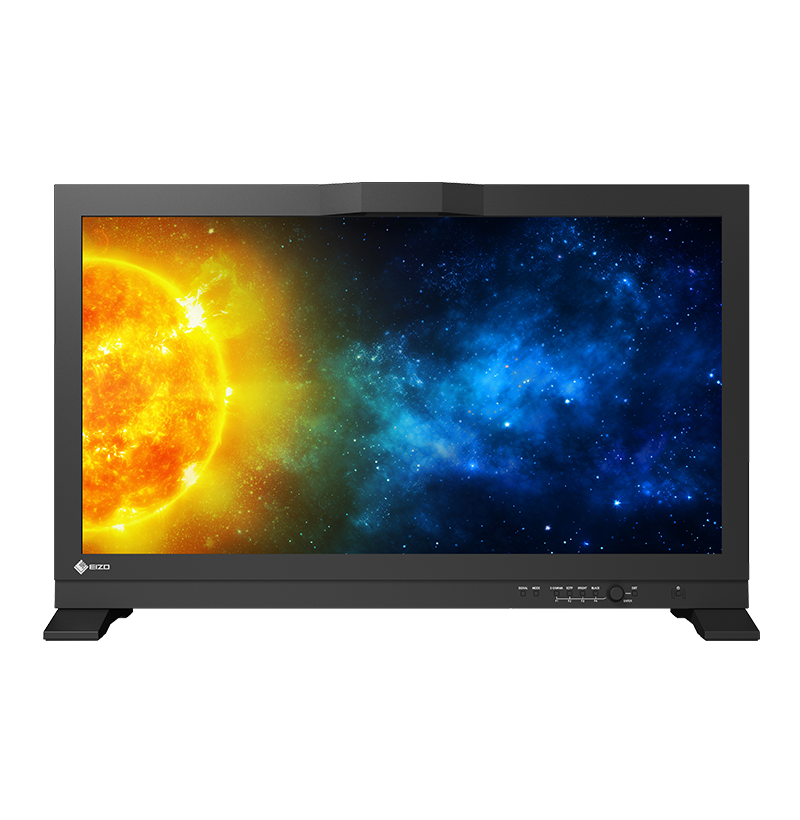

Eizo Prominence CG1: The Ultimate HDR Reference Monitor for Professionals

The Eizo Prominence CG1 is a cutting-edge 30.5-inch HDR reference monitor designed for professionals in the film, television, and post-production industries. With its exceptional image quality, precise color accuracy, and advanced features, the Prominence CG1 sets a new standard for HDR monitoring.

Key Features:

  • True HDR Performance: Achieves 1000 cd/m2 high brightness and 1,000,000:1 contrast ratio without local dimming, ensuring accurate display of light and dark content across the entire screen.
  • DCI 4K Resolution: 4096 x 2160 resolution provides exceptional detail and clarity for demanding visual tasks.
  • Wide Color Gamut: Supports a wide color gamut, covering 98% of DCI-P3 and 99% of Adobe RGB color spaces, ensuring accurate color reproduction for HDR and SDR content.
  • Built-in Calibration Sensor: Automates color calibration, eliminating the need for external sensors and ensuring consistent color accuracy over time.
  • Multiple HDR and SDR Presets: Offers a variety of factory-calibrated presets for different HDR and SDR video standards, simplifying setup and ensuring accurate display of various content types.
  • Advanced Connectivity: Includes 12G-SDI, HDMI, and DisplayPort inputs, supporting a wide range of professional video formats and devices.
  • SMPTE ST 2110 Support: Enables integration into IP-based video production workflows, facilitating efficient content delivery and management.

Key Benefits:

  • Uncompromising Image Quality: The Prominence CG1 delivers stunningly realistic images with exceptional detail, contrast, and color accuracy, allowing professionals to make critical decisions with confidence.
  • Streamlined Workflow: The built-in calibration sensor and multiple presets simplify color management and ensure consistent results, saving time and effort.
  • Future-Proof Connectivity: The support for the latest video standards and IP-based workflows ensures that the Prominence CG1 can be seamlessly integrated into any professional environment.
  • Enhanced Productivity: The large screen size and high resolution provide ample workspace for demanding visual tasks, improving efficiency and reducing eye strain.

Key Applications:

  • Color Grading and Mastering: The Prominence CG1 is the ideal reference monitor for color grading and mastering HDR and SDR content, ensuring accurate color representation and consistent results across different displays.
  • Film and Television Production: The monitor’s exceptional image quality and advanced features make it suitable for on-set monitoring, post-production editing, and visual effects work.
  • Broadcasting: The Prominence CG1’s support for various video standards and IP-based workflows makes it a valuable tool for broadcast studios and transmission facilities.
  • Other Professional Applications: The monitor’s versatility and accuracy make it suitable for a wide range of other professional applications, including medical imaging, scientific visualization, and graphic design.

Additional Key Applications:

  • On-Set Monitoring: The Prominence CG1’s robust design and portability make it suitable for on-set monitoring, allowing directors and cinematographers to accurately assess the captured footage.
  • Visual Effects (VFX): The monitor’s high resolution and color accuracy are essential for VFX artists, enabling them to create seamless and realistic visual effects.
  • Animation: The Prominence CG1’s precise color reproduction is crucial for animators, ensuring that their creations are displayed accurately on different devices.
  • Photography: The monitor’s wide color gamut and accurate color representation make it suitable for professional photographers, allowing them to edit and retouch their images with confidence.

The Eizo Prominence CG1 is a true HDR reference monitor that meets the demanding needs of professionals in the film, television, and post-production industries. With its exceptional image quality, advanced features, and versatile connectivity, the Prominence CG1 empowers professionals to create stunning visuals with confidence.

View More Eizo Products Here

Specifications

Model Variations CG1-BK
Panel
Type IPS
Backlight Wide-Gamut LED
Size 30.5″ (77.5 cm)
Native Resolution 4096 x 2160 (17:9 aspect ratio)
Viewable Image Size (H x V) 685.7 x 361.6 mm
Pixel Pitch (H x V) 0.167 x 0.167 mm
Pixel Density 152 ppi
Display Colors 1.07 billion colors, 10-bit display (24-bit LUT)
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 1000 cd/m2
Contrast Ratio (typical) 1,000,000:1
Response Time (typical) 12 ms (gray-to-gray)
Color Gamut (typical) DCI-P3: 100%
Video Signals
Input Terminals DisplayPort (HDCP 2.3), HDMI (Deep Color, HDCP 2.3), BNC (12G/6G/3G/HD-SDI) x 2, BNC (3G/HD-SDI) x 2, SFP28 (25GbE, ST 2110) x 2
Output Terminals BNC (12G/6G/3G/HD-SDI, through-out (active)) x 2, BNC (3G/HD-SDI, through-out (active)) x 2
Digital Scanning Frequency (H / V) DisplayPort: 25 – 137 kHz / 23 – 61 Hz
HDMI: 15 – 136 kHz / 23 – 61 Hz
USB
Upstream USB 5Gbps: Type-B x 2
Downstream USB 5Gbps: Type-A x 3
Power
Power Input AC 100 – 240 V, 50 / 60 Hz
Typical Power Consumption 271 W
Maximum Power Consumption 420 W
Power Save Mode 0.5 W
Built-in Calibration Sensor Yes
Features & Functions
Brightness Stabilization Yes
Digital Uniformity Equalizer Yes
Preset Modes BT.709, BT.2020, DCI-P3, PQ_THEATER, PQ_DCI-P3, PQ_BT.2100, HLG_BT.2100, Calibration, Sync Signal
HDR Gamma HLG, PQ curve
OSD Languages English, German, French, Spanish, Italian, Swedish, Simplified Chinese, Traditional Chinese, Japanese
Communication Interface RJ-45
Others Color Adjustment, PQ Option, SelfCalibration, Input Color Format, YUV Color Matrix, Input Range, I/P Conversion, Black Level Lift, Deinterlacing, Time Code Settings, Interlace / PsF, Picture Expansion, Nearest Neighbor, Zoom, BT.709 Gamut warning, Luminance Warning, Blue Only, Marker, Center Marker, Power Save, Off Timer, Input Skip, Mode Skip, Custom Key, Remote Control (GPI), Information Display, Key Lock, Pixel Inspection
Physical Specifications
Dimensions (Landscape, W x H x D) 746.8 x 482.7 x 208 mm
Dimensions (Without Stand, W x H x D) 746.8 x 457 x 165.8 mm
Net Weight 17.5 kg
Net Weight (Without Stand) 16.8 kg
Environmental Requirements
Operating Temperature 0 – 30°C
Operating Humidity (R.H., non condensing) 20 – 80%
Certifications & Standards (Please contact EIZO for the latest information.) CB, CE, UKCA, TUV/GS, cTUVus, FCC-A, CAN ICES-3 (A), TUV/S, PSE, VCCI-A, RCM, RoHS, WEEE, TUV/Ergonomics
Proprietary Software
Color Management Software ColorNavigator 7 Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables DisplayPort (2 m), HDMI (2 m)
Others AC power cord, USB Type-A – USB Type-B cable (2 m), Setup guide, Factory Report, Warranty card, Clamp for HDMI
Warranty 5 Years 2 5
Zero bright sub-pixels for six months from date of purchase for purchases made on September 1, 2015 or later.
Dimension Drawing PDF
  1. 2  With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
  2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.

What's In The Box

According to Eizo’s official resources, the following items are included in the box with the Eizo Prominence CG1:

  • Calibration report: A factory report showing the measurement results of the monitor at the time of production, verifying its accuracy.
  • Signal cable HDMI – HDMI (Ultra High Speed): For connecting devices via HDMI.
  • USB cable (Type A – Type B): For connecting to a computer for calibration and control.
  • Signal cable DisplayPort – DisplayPort: For connecting devices via DisplayPort.
  • Manual: Usually provided as a download.
  • Power cord: For powering the monitor.
  • Quick guide: A basic setup guide.

It’s worth noting that this information is based on the most readily available documentation. It’s always a good idea to double-check with your retailer or Eizo directly to confirm the exact contents of the box, as they may vary slightly depending on the region or specific package.
