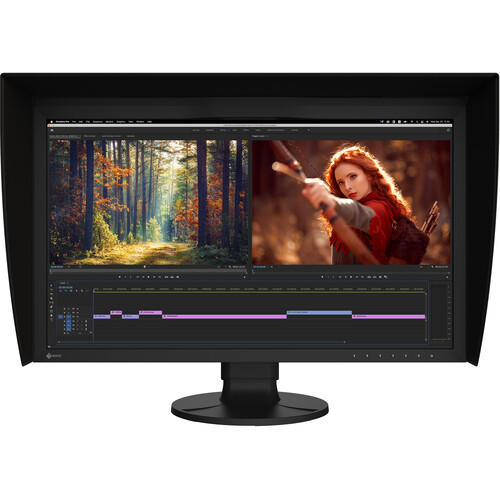

EIZO ColorEdge CG2700X Monitor

This flagship 27-inch monitor marks a new generation of ColorEdge with a new exterior design. With 4K UHD (3840 x 2160) resolution, 500 cd/m2 high brightness, and HDR gamma support, the monitor reproduces content in remarkable detail. USB Type-C connectivity provides a streamlined experience so professionals in video editing, game development, photography, and more can focus on creating.

Read More

SKU: CG2700X Categories: , Tag:

Specifications

Panel
Type IPS
Backlight Wide-Gamut LED
Size 26.9″ (68.4 cm)
Native Resolution 3840 x 2160 (16:9 aspect ratio)
Viewable Image Size (H x V) 596.2 x 335.3 mm
Pixel Pitch 0.155 x 0.155 mm
Pixel Density 164 ppi
Display Colors 1.07 billion colors, 10-bit display (from a palette of 278 trillion, 16-bit LUT)
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 500 cd/m2
Contrast Ratio (typical) 1450:1
Response Time (typical) 13 ms (gray-to-gray)
Color Gamut (typical) Adobe RGB: 99%, DCI-P3: 98%
Video Signals
Input Terminals USB Type-C (DisplayPort Alt Mode, HDCP 2.3), DisplayPort (HDCP 2.3), HDMI (Deep Color, HDCP 2.3)
Digital Scanning Frequency (H / V) USB Type-C, DisplayPort: 25 – 137 kHz / 23 – 61 Hz
HDMI: 15 – 135 kHz / 23 – 61 Hz
USB
Upstream USB 3.1 Gen 1: Type-C (DisplayPort Alt Mode, Power Delivery Source 94 W max.), USB 3.1 Gen 1: Type-B
Downstream USB 3.1 Gen 1: Type-A x 2
USB 2.0: Type-A x 2
USB LAN Adapter RJ-45 (1000BASE-T)
Power
Power Requirements AC 100 – 240 V, 50 / 60 Hz
Typical Power Consumption 65 W
Maximum Power Consumption 274 W
Power Save Mode 0.5 W or less
Built-in Calibration Sensor Yes
Features & Functions
Brightness Stabilization Yes
Digital Uniformity Equalizer Yes
Preset Modes User, BT.2020, BT.709, DCI-P3, PQ_DCI-P3, HLG_BT.2100, AdobeRGB, sRGB, Calibration (CAL), SYNC_SIGNAL
HDR Gamma HLG, PQ curve
OSD Languages English, German, French, Spanish, Italian, Swedish, Simplified Chinese, Traditional Chinese, Japanese
Others Color Adjustment, PQ Option, HLG Option, SelfCalibration, Input Color Format, YUV Color Matrix, Input Range, I/P Conversion, Picture Expansion, Zoom, DCI 4K Cropping, BT.709 Gamut warning, Luminance Warning, Marker, Menu Rotation, Power Save, Input Skip, Mode Skip, Custom Key, Information Display, Key Lock, DUE Priority, Ethernet
Physical Specifications
Dimensions (Landscape, W x H x D) 638 x 415.9 – 570.9 x 245 mm
Dimensions (Without Stand, W x H x D) 638 x 390 x 86.2 mm
Dimensions (Landscape with Hood, W x H x D) 657.4 x 425.6 – 580.6 x 353.5 mm
Net Weight 9.7 kg
Net Weight (Without Stand) 6.7 kg
Net Weight (With Hood) 10.4 kg
Height Adjustment Range 155 mm
Tilt 35° Up, 5° Down
Swivel 344°
Pivot 90°
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 0 – 35°C
Operating Humidity (R.H., non condensing) 20 – 80%
Certifications & Standards (Please contact EIZO for the latest information.) CB, CE, UKCA, TUV/GS, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, RCM, EAC, RoHS, WEEE, TUV/Ergonomics, TUV/Color Accuracy (Quick Stability), FograCert Softproofing System (class A)
Proprietary Software
Color Management Software ColorNavigator 7 Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables USB Type-C (2 m), HDMI (2 m)
Others AC power cord, USB Type-A – USB Type-B cable (2 m), Setup guide, Adjustment certificate, ScreenCleaner, Monitor hood, Warranty card
Warranty 5 Years 2 5
Zero bright sub-pixels for six months from date of purchase for purchases made on September 1, 2015 or later.
Dimension Drawing PDF
