Dulens APO Mini Prime T2.4/T2.6 4-Lens Kit (ARRI PL)

Key Features
  • 31, 43, 58, and 85mm Lens Kit
  • Covers Full-Frame Sensors
  • T2.4-22 Aperture Range
  • Interchangeable PL Mounts
  • Coated for Smooth, Vintage Look
  • 80mm Front Diameter, 72mm Filter Thread
  • 46mm Image Circle, 11 Iris Blades
  • Focus Marks in Feet and Meters
  • 0.8 MOD Focus and Iris Gears
  • Hard Case
SKU: DUAMP21BPLK Categories: , Tag:

Description

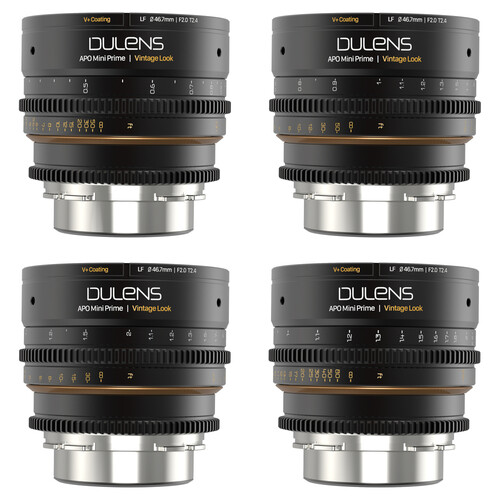

Dulens APO Mini Prime T2.4/T2.6 4-Lens Kit (ARRI PL): Compact, Apochromatic Cinema Optics

The Dulens APO Mini Prime 4-Lens Kit (ARRI PL) is a meticulously crafted set of professional cinema lenses designed for the modern filmmaker. This kit delivers exceptional apochromatic performance in a compact and lightweight form factor, making it the perfect choice for demanding productions where image quality, portability, and seamless workflow are paramount. Featuring a consistent T2.4/T2.6 aperture and a universal design, this set is ideal for everything from run-and-gun documentary shoots and drone work to studio setups and large-scale productions.

This comprehensive kit includes five essential focal lengths: 31mm T2.4, 43mm T2.4, 58mm T2.4, and 85mm T2.4.

Key Features for Uncompromising Cinematography:

  • Apochromatic (APO) Optical Design: At the core of these lenses is an advanced apochromatic design that virtually eliminates chromatic aberration. This means your images will be free from distracting color fringing, ensuring crisp, high-contrast, and color-accurate footage even at the widest apertures. This is especially crucial for capturing fine details and high-resolution visuals.
  • Compact & Lightweight “Mini Prime” Form Factor: Weighing less and being significantly smaller than traditional cinema primes, these lenses are a game-changer for mobile filmmaking. Their compact size makes them perfectly suited for use on gimbals, drones, Steadicam rigs, and for comfortable handheld shooting, allowing for greater creative freedom and agility on set.
  • Consistent Mechanical Design: The entire set is engineered with a unified form factor. Each lens shares the same compact dimensions, the same 95mm front filter diameter, and features standardized focus and iris gear positions. This intelligent design allows for lightning-fast lens changes without the need to re-adjust matte boxes, follow focus units, or other accessories, saving valuable time and ensuring a smooth workflow.
  • Fast T2.4 Maximum Aperture: The constant T2.4 aperture across the set provides exceptional low-light performance and allows for stunningly shallow depth of field. This cinematic capability helps you isolate your subject and create beautiful, creamy bokeh, adding a rich, professional quality to your visuals.
  • Large Image Circle Coverage: Designed to cover large format and full-frame sensors up to 46mm, these lenses are compatible with a wide range of professional cinema cameras, including ARRI Alexa LF, Mini LF, RED MONSTRO, V-RAPTOR, Sony VENICE, and more. This future-proof coverage ensures the lenses can grow with your camera ecosystem.
  • Exceptional Optical Performance: The Dulens Mini Primes are renowned for their modern optical quality, delivering sharp resolution from edge to edge, minimal distortion, and well-controlled flaring. They provide a clean, neutral image that allows cinematographers to apply their own creative look in post-production.
  • Professional ARRI PL Mount: The industry-standard ARRI PL mount ensures robust, secure, and reliable connection to a vast array of high-end cinema cameras, making this kit a versatile and dependable tool for any professional production.
  • Durable Build Quality: Constructed with robust all-metal housings, these lenses are built to withstand the rigors of professional film sets, ensuring long-term reliability and performance.

The Dulens APO Mini Prime 4-Lens Kit is the ultimate combination of portability, precision, and professional optical quality. It empowers cinematographers to work faster, lighter, and with absolute confidence, capturing stunning apochromatic imagery across a versatile range of focal lengths.

31mm Specifications

Focal Length
31mm
Maximum Aperture
T2.4
Lens Mount
ARRI PL
Lens Format Coverage
Large Format
Filter Thread
72 mm
Image Stabilization
No
Electronic Communication
No
Maximum Aperture
T2.4
Minimum Aperture
T22
Lens Mount
ARRI PL
Interchangeable Mount
Yes
Lens Format Coverage
Large Format
Image Circle
46.0 mm
Focus Scales
Imperial, Metric
Filter Thread
72 mm
Minimum Focus Distance
15″ / 38.1 cm
Aperture/Iris Blades
11
Image Stabilization
No
Gear Standard
0.8 MOD
Electronic Communication
No
Diameter
Front: 3.1″ / 80 mm
Length
2.7″ / 68 mm
Weight
1.2 lb / 550 g
Packaging Info
Package Weight
1.945 lb
Box Dimensions (LxWxH)
5.9 x 5.1 x 5″

43mm Specifications

Focal Length
43mm
Maximum Aperture
T2.4
Lens Mount
ARRI PL
Lens Format Coverage
Large Format
Filter Thread
72 mm
Image Stabilization
No
Electronic Communication
No
Maximum Aperture
T2.4
Minimum Aperture
T16
Lens Mount
ARRI PL
Interchangeable Mount
Yes
Lens Format Coverage
Large Format
Image Circle
46.0 mm
Focus Scales
Imperial, Metric
Filter Thread
72 mm
Minimum Focus Distance
39″ / 99.1 cm
Aperture/Iris Blades
11
Image Stabilization
No
Gear Standard
0.8 MOD
Electronic Communication
No
Diameter
Front: 3.1″ / 80 mm
Length
2.7″ / 68 mm
Weight
18.7 oz / 530 g
Packaging Info
Package Weight
2.015 lb
Box Dimensions (LxWxH)

58mm Specifications

Focal Length
58mm
Maximum Aperture
T2.4
Lens Mount
ARRI PL
Lens Format Coverage
Large Format
Filter Thread
72 mm
Image Stabilization
No
Electronic Communication
No
Maximum Aperture
T2.4
Minimum Aperture
T22
Lens Mount
ARRI PL
Interchangeable Mount
Yes
Lens Format Coverage
Large Format
Image Circle
46.0 mm
Focus Scales
Imperial, Metric
Filter Thread
72 mm
Minimum Focus Distance
27″ / 68.6 cm
Aperture/Iris Blades
11
Image Stabilization
No
Gear Standard
0.8 MOD
Electronic Communication
No
Diameter
Front: 3.1″ / 80 mm
Length
2.7″ / 68 mm
Weight
18 oz / 510 g
Packaging Info
Package Weight
2.08 lb
Box Dimensions (LxWxH)

85mm Specifications

Focal Length
85mm
Maximum Aperture
T2.4
Lens Mount
ARRI PL
Lens Format Coverage
Large Format
Filter Thread
72 mm
Image Stabilization
No
Electronic Communication
No
Maximum Aperture
T2.4
Minimum Aperture
T22
Lens Mount
ARRI PL
Interchangeable Mount
Yes
Lens Format Coverage
Large Format
Image Circle
46.0 mm
Focus Scales
Imperial, Metric
Filter Thread
72 mm
Minimum Focus Distance
33″ / 83.8 cm
Aperture/Iris Blades
11
Image Stabilization
No
Gear Standard
0.8 MOD
Electronic Communication
No
Diameter
Front: 3.1″ / 80 mm
Length
2.7″ / 68 mm
Weight
1.2 lb / 530 g
Packaging Info
Package Weight
2.095 lb
Box Dimensions (LxWxH)

What's In The Box

  • Dulens APO Mini Prime 31mm T2.4 Lens (PL Mount)
    • Front Lens Cap
    • Rear Lens Cap
    • Limited 1-Year Manufacturer Warranty
  • Dulens APO Mini Prime 43mm T2.4 Lens (ARRI PL)
    • Front Lens Cap
    • Rear Lens Cap
    • Limited 1-Year Manufacturer Warranty
  • Dulens APO Mini Prime 58mm T2.4 Lens (PL Mount)
    • Front Lens Cap
    • Rear Lens Cap
    • Limited 1-Year Manufacturer Warranty
  • Dulens APO Mini Prime 85mm T2.4 Lens (PL Mount)
    • Front Lens Cap
    • Rear Lens Cap
    • Limited 1-Year Manufacturer Warranty
  • Dulens Hard Case for Set of 5 APO Mini Prime Lenses
    • Limited 1-Year Manufacturer Warranty
