Chrosziel MagNum Mini Kits

SKU: MN-MINI_3 Category: Tag:

Description

Request a quote!

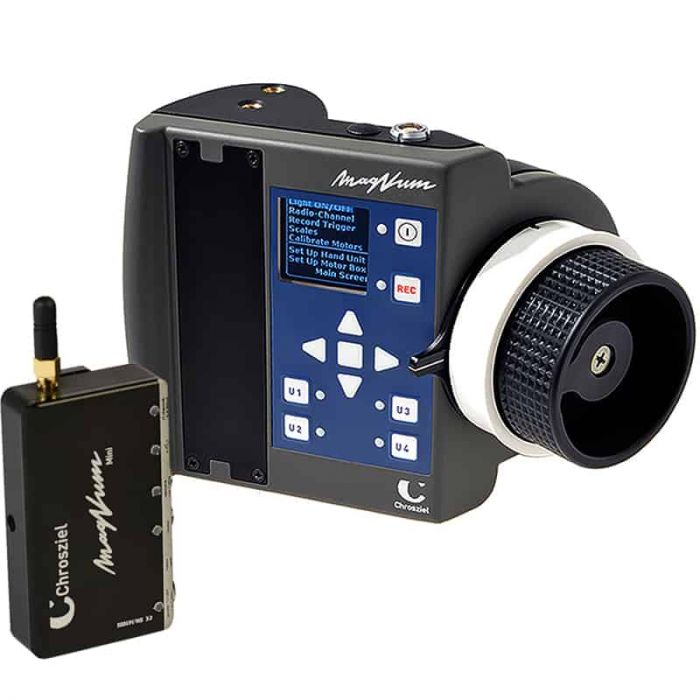

This Chrosziel MagNum Mini Kit is a lightweight, highly portable, ergonomic wireless follow focus ideal for gimbal, drone and handheld shooting (with an RF transmission range of more than 100m).

The MagNum transmitter (hand unit) offers eleven 2.4 GHz rf channels, and with its on-board display, you can monitor and select the cleanest frequency for optimum wireless connectivity. This display can even be flipped to operate the MagNum with either your right- or left-hand. Additionally, the transmitter features a 2-pin input for attaching a small LED to view the controls in the dark. The input of active, professional cinematographers was crucial in the development of this unit to ensure maximum intuitively and a virtually seamless integration into any crew’s workflow.

The focus range can be limited digitally – as two focus points can be set at each end of the wheel’s full rotation. You can then disable and re-enable this limited focus range at the press of a button – the transmitter also provides a button to trigger recording.

The MagNum Mini receiver offers multiple mounting options, such as the separately sold rod adapter, the included cold shoe mount and more. This MagNum Mini is great in cooperation with Hedén motors and other third-party lens motors. Add this MagNum Mini Kit to your drone, gimbal or lightweight rig today to shoot and pull focus from more than 100m away.

Specifications

Transmitter Hand Unit

Kit

(1-Channel)(Heden Motor)

Superior Kit (1-channel)(Heden Motor)

Transmitter (Hand Unit)

MN-100T

MN-150T

Dimensions:

180 x 150 x 115 mm

Weight:

520 g

625 g

Power

Max. 9V, 100 mA

Battery Type

7.5 V, Sony FM50 / 55 Li-Ion rechargeable

Screw Threads:

5 x 1/4“ 20

Connectors:

LED gooseneck light Lemo 2-Pin

Standard USB-Interface

Display:

Multi-colour OLED display

128×128 pixel resolution



MagNum Mini Receiver

Dimension: 91 x 53 x 19 mm (3.58 x 2.09 x 0.75 in.)
Weight: 120 g (4.23 oz)
Power: 10-30 V, max. 2 A
Connectors: • Motor Lemo 0B 7-Pin

• Power with Cam Run / Stop Lemo 0B 5-Pin

• Cam Run / Stop Lemo 0B 9-Pin

• Standard USB-Interface

Screw Threads: 4 x 1/4“ 20
Status LEDs: Motor, Power, Cam Run / Stop, USB, RF signal
RF Channel Selector: 11 x 2.4 GHz Range Channels 5 – F
RF Transmission Distance: + 100 m (330 ft), depending on environment
Motor Compatibility: Chrosziel Digital Motor CDM-100S

all major digital lens motors

Transmitter Compatibility: Chrosziel MagNum Hand Unit MN-100T

Chrosziel MagNum Hand Unit MN-150T

Chrosziel MagNum Hand Unit MN-200T

Included

Chrosziel MagNum Mini Single-Channel Wireless Focus Control Receiver
Chrosziel Angled Antenna for ALADIN and DigiFox Receivers
Chrosziel MN-150 MagNum Extendable Transmitter
Chrosziel MN-BAT MagNum Remote Control Battery
Chrosziel MN-CH MagNum Battery Charger
US Power Cable
UK Power Cable
Euro Power Cable
Car Power Cable
Chrosziel Padded Neck Strap for Lens Control Transmitters (Black)
