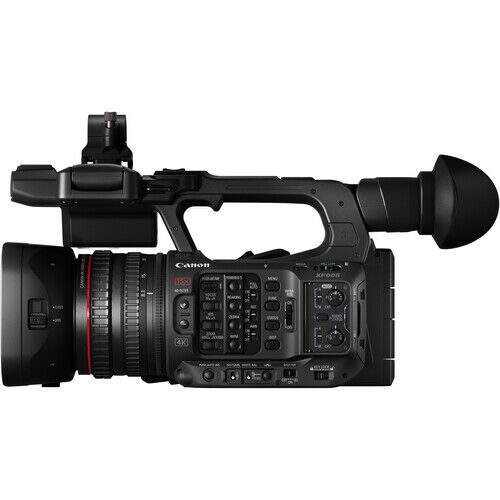

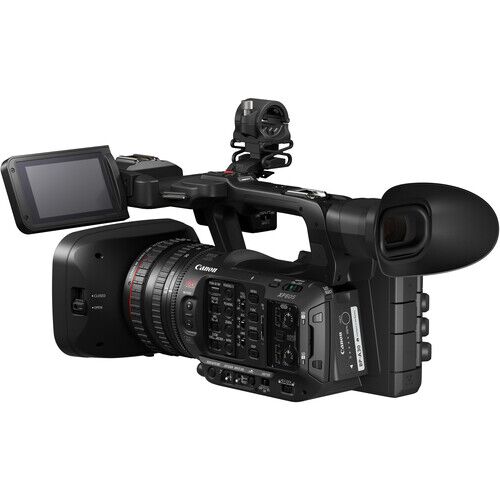

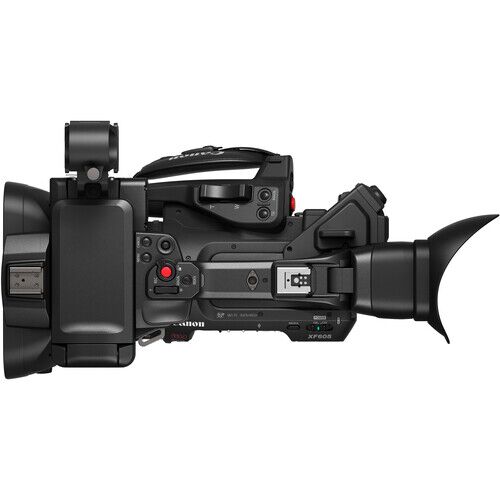

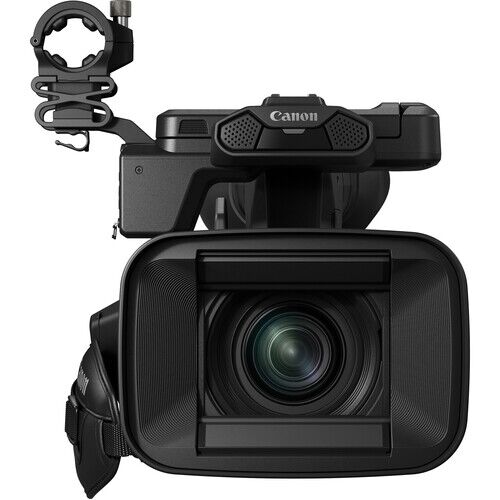

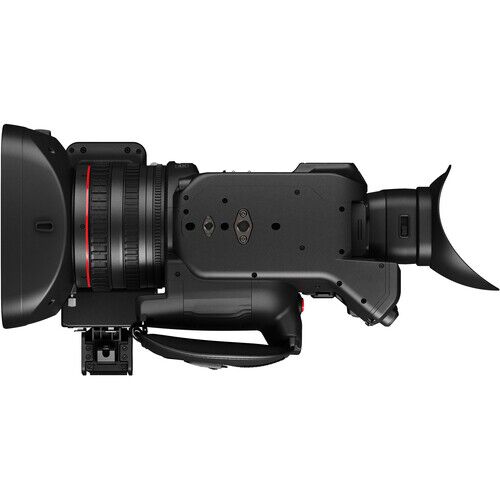

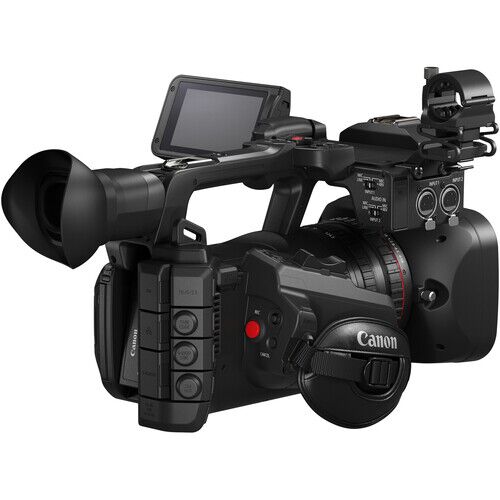

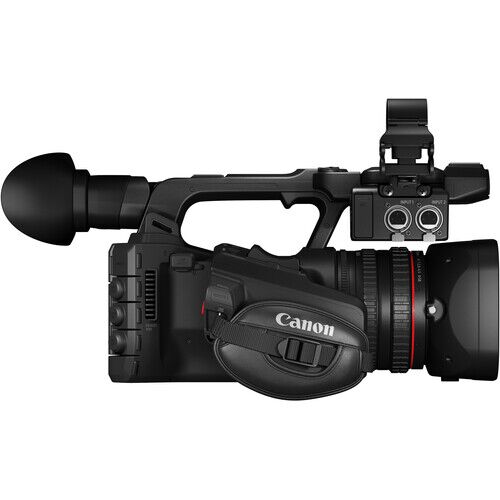

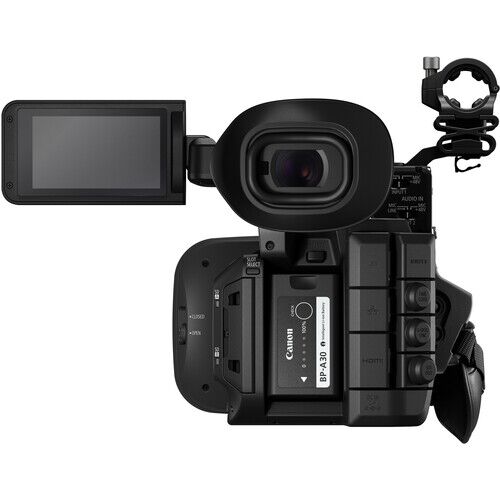

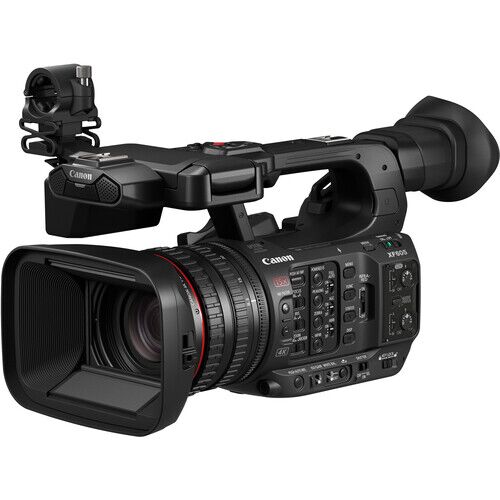

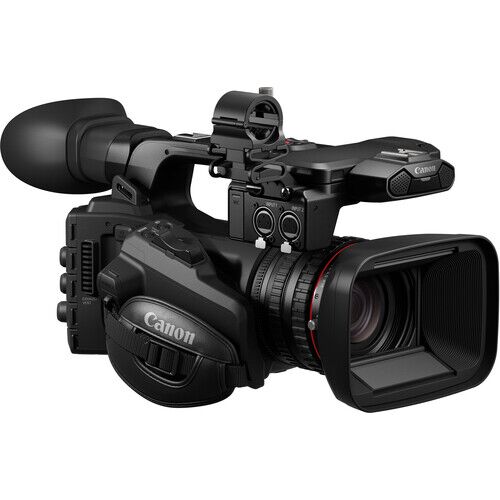

Canon XF605 UHD 4K HDR Pro Camcorder

R95,095.00

Key Features
  • 1″ CMOS Sensor, 4:2:2 10-Bit
  • H.265/H.264 MP4 Format, XF-AVC
  • UHD 4K up to 60 fps, 1080p to 120 fps
  • iOS App | 15x Optical/30x Digital Zoom
  • Dual-Pixel CMOS Autofocus Feature
  • HDR Recording, Canon Log 3, Wide DR
  • 12G-SDI, HDMI & USB-C Outputs
  • Optical & Digital Stabilization
  • Four XLR Inputs, 4-Channel LPCM Audio
  • Discrete Focus, Iris, Zoom Lens Rings
SKU: 5076C003AA Category: Tag:

Description

High-Resolution Performance
Whether you shoot ENG, sports events, live entertainment, or broadcast-style footage, the Canon XF605 is poised to deliver high-resolution video using a compact form and mobile workflow options, including an iPhone app, a LAN port, and built-in dual-band, MIMO Wi-Fi.

UHD 4K CMOS Sensor
Capture rates of up to UHD 4K 10-bit 4:2:2 include broadcast-friendly 59.94 frame rates
High-speed capture at 1080p120 for revealing slo-mo shots
A high sensitivity of up to 2000 lux at f/12 is perfect for dimly lit locations

DIGIC DV 7 Engine
The DIGIC DV 7 engine powers the camcorder’s processing of the 4K, 10-bit 4:2:2 video and selectable color matrix settings, including Canon EOS and other industry-standard matrix choices, as well as supporting Canon Log 3/HLG and PQ color spaces. The processor allows you to take advantage of the dual SD card slots for dual recording, relay recording, and multiple simultaneous recording options of your footage in MP4 or XFAVC.

15x Canon L Zoom
A 15x optical/30x digital zoom (25.5-382.5mm 35mm equivalent) lets you reach shots near and far, whether in the field or the studio, and the 9-blade iris provides a pleasing natural bokeh
Separate F/I/Z controls: Three rings provide professional, individual control over focus, iris, and zoom settings
Image stabilization: Three optical IS choices include standard, dynamic, and powered IS for smoother motion shots

Advanced Autofocus
The XF605 is the first of the ENG-friendly XF family to offer two autofocus features familiar to Canon EOS series users that help keep your image sharp during dynamic shots:
Eye AF zeroes in on your subject’s eye for crisp eye focus
EOS iTR AF X (head detection) does a neat trick of remaining focused on your subject even after they turn their head to the side or away from the camera



Specifications

Imaging
Sensor Resolution Actual: 13.4 Megapixel (4268 x 3148)
Effective: 8.29 Megapixel (3840 x 2160)
Sensor Type 1″ CMOS Sensor
Image Stabilization Optical in Integrated Lens
Digital
Built-In ND Filter Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Shutter Type Rolling Shutter
Shutter Speed 1/4 to 1/2000 sec
Shutter Angle 11 to 360°
Precise Scan Rate Control Yes
Sensitivity f/12 at 2000 lux
Minimum Illumination 1.5 Lux at 1/30 Shutter Speed
White Balance 2000 to 15,000K
Lens
Focal Length 8.3 to 124.5mm (35mm Equivalent Focal Length: 25.5 to 382.5mm)
Optical Zoom Ratio 15x
Max Digital Zoom 30x ( in 1080p)
Maximum Aperture f/2.8
Minimum Aperture f/4.5
Optical Design 18 Elements in 14 Groups
Minimum Focus Distance Entire Zoom Range: 2.0′ / 60.0 cm
Wide: 0.4″ / 1.0 cm
Filter Size 58 mm
Control Rings Focus
Zoom
Iris
Focus Control Autofocus
Manual Focus
Recording
Recording Modes H.265/MP4 4:2:2 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (135 to 225 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94/120 fps (50 Mb/s)
1280 x 720p at 23.98/25/29.97/50/59.94 fps (12 Mb/s)
H.265/MP4 4:2:0 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (100 to 170 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 Mb/s)
1280 x 720p at 23.98/25/29.97/50/59.94 fps (9 to 12 Mb/s)
H.264 Long GOP/MP4 4:2:0 8-Bit:
3840 x 2160p (150 Mb/s)
1920 x 1080p (35 Mb/s)
MXF/XF-AVC 4:2:2 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (160 to 410 Mb/s)
1920 x 1080p at 23.98/25/29.97/30/50/59.94/120 fps (50 to 310 Mb/s)
1920 x 1080i at 50/59.94 fps (50 to 160 Mb/s)
Variable Frame Rates to 120 fps
Gamma Curve Canon Log 3, HDR-HLG
Audio Recording 2-Channel 16-Bit 48 kHz AAC Audio
4-Channel 24-Bit 48 kHz LPCM Audio
Still Image Support JPEG
2 MP (1920 x 1080)
IP Streaming MPEG2: 1920 x 1080 to 3840 x 2160 at 25p, 29.97p, 50p, 59.94p (4.0 to 16.00 Mb/s)
MPEG2: 1920 x 1080 to 1920 x 1080 at 50i, 59.94i (4.0 to 9.0 Mb/s)
Interface
Media/Memory Card Slot Slot 1: SD/SDHC/SDXC
Slot 2: SD/SDHC/SDXC
Video Connectors 1 x HDMI (HDMI 2.0) Output
1 x BNC (12G-SDI) Output
Audio Connectors 2 x 3-Pin XLR Input
1 x 1/8″ / 3.5 mm Stereo Input
1 x 1/8″ / 3.5 mm Stereo Headphone Output
Built-In Microphone Type Stereo
Other I/O 1 x USB Type-A Output
1 x USB Type-C
1 x BNC Genlock, Sync Input/Output
1 x BNC Timecode Input/Output
1 x 2.5 mm Control
1 x 8-Pin D-Sub Control
1 x RJ45 LAN Input/Output
Wireless Interfaces 2.4 / 5 GHz MIMO Wi-Fi Video Output, Audio Output, Control
Monitor
Size 3.45″
Resolution 2,760,000 Dot
Display Type Articulating Touchscreen LCD
EVF
EVF Attached
EVF Display Type OLED
Screen Size .36″
EVF Resolution 1,770,000 Dots
Power
Battery Type Canon BP-A Series
Power Connectors 1 x Barrel (24 VDC) Input
Power Consumption 21.5 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 0 to 85%

Included

1x Canon XF605 Body
1x Finder Cap Packing
1x Hood Unit
1x Mic Holder Unit
1x Screw Binding Head, M4X20, BZ3
1x Eyecup Adapter
1x AC Cable
1x Battery Pack BP-A30
1x Battery Charger CG-A20
1x Compact Power Adapter CA-CP200 L
