Canon CR-N350 4K NDI PTZ Camera with 20x Zoom (Satin Black)

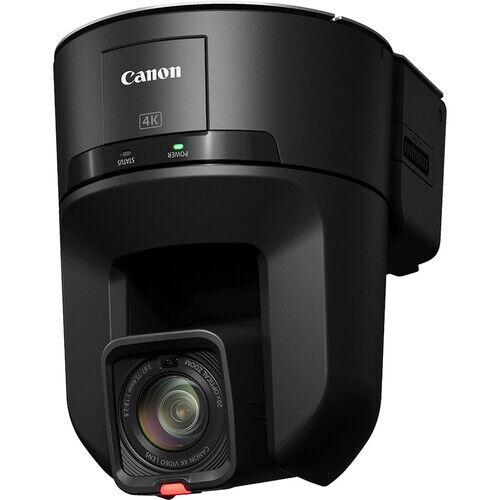

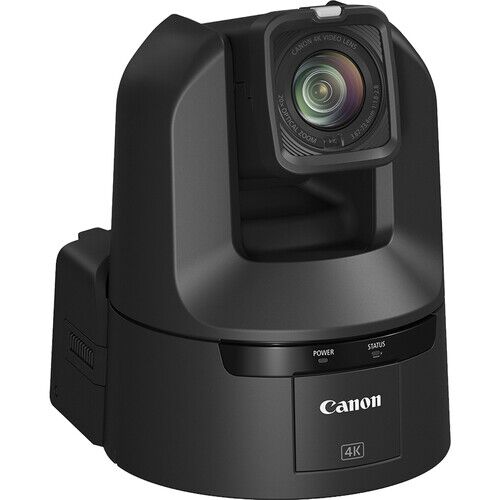

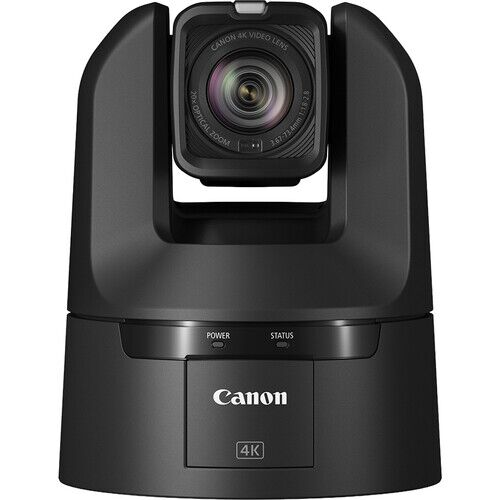

The Canon CR-N350 4K NDI PTZ Camera (Satin Black) is a professional-grade remote camera engineered for broadcast, live production, and corporate environments that demand exceptional image quality and flexible IP-based workflows. With its 1/2.3-inch 4K CMOS sensor, DIGIC DV6 image processor, and 20x optical zoom, it delivers cinematic visuals, accurate color, and smooth control for any production scenario.
4K UHD Image Quality with DIGIC DV6 Processing
The CR-N350 captures ultra-high-definition video at up to 4K UHD 30p, producing crisp, detailed footage with natural color reproduction and impressive low-light performance. Its DIGIC DV6 image processor ensures rich gradation, reduced noise, and exceptional clarity even in challenging lighting environments.
The camera’s 1/2.3-inch CMOS sensor supports full HD 60p output, allowing simultaneous 4K and HD streaming—ideal for hybrid productions requiring multiple resolutions.
- Resolution: 4K UHD (3840 × 2160) at 30p / Full HD at 60p
- Image Processor: Canon DIGIC DV6
- Image Sensor: 1/2.3-inch CMOS, approx. 8.29MP
- Dynamic Range: Wide DR gamma for balanced highlights and shadows
20x Optical Zoom with Advanced Image Stabilization

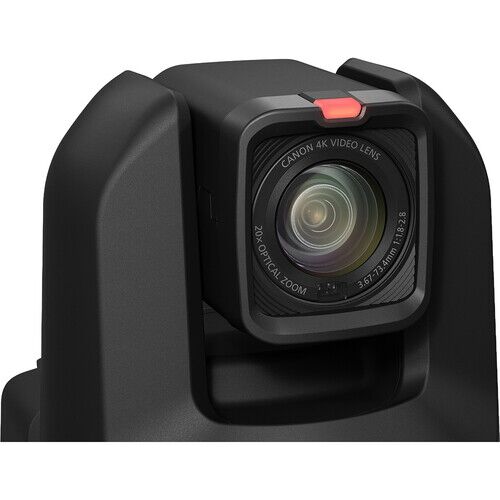

Equipped with a 20x optical zoom lens (29.3–601mm equivalent), the CR-N350 delivers exceptional versatility—capturing everything from wide establishing shots to tight close-ups without image degradation. The Hybrid Autofocus system combines contrast and phase detection for fast, accurate focusing across various subjects and lighting conditions.
Integrated Optical Image Stabilization (OIS) keeps footage steady during panning or telephoto operation, ensuring smooth, professional results even in dynamic environments.
- Zoom Range: 20x optical (29.3–601mm equivalent)
- Digital Zoom: 20x additional digital zoom (up to 400x combined)
- Focus System: Hybrid AF with contrast and phase detection
- Stabilization: Optical Image Stabilizer (OIS)
IP Streaming and NDI|HX2 Workflow Integration
The CR-N350 is fully equipped for modern broadcast and streaming applications with NDI|HX2, RTSP, RTMP, and SRT protocols for efficient IP-based production. The built-in NDI|HX2 functionality enables seamless integration with existing NDI networks, allowing low-latency, high-quality video transmission over standard Ethernet.
Additionally, the camera supports PoE+ (Power over Ethernet), simplifying setup by delivering power, video, and control signals through a single cable.
- Protocols Supported: NDI|HX2, RTMP, RTSP, SRT, RTP, Canon XC Protocol
- Connectivity: Ethernet (RJ-45), HDMI, 3G-SDI, USB-C (UVC streaming)
- Power Supply: PoE+ compatible
- Control Interfaces: RS-422 serial, IP, or Canon’s RC-IP100 hardware controller
Smooth, Precise PTZ Control
The CR-N350 features a high-torque motor mechanism for smooth and silent pan-tilt-zoom movement, ideal for broadcast, church, and conference applications. It offers variable speed control and customizable movement presets, enabling precise operation for live production environments.
- Pan Range: ±170°
- Tilt Range: –30° to +90°
- Pan Speed: 0.1°–100°/sec
- Tilt Speed: 0.1°–80°/sec
- Presets: Up to 100 programmable camera positions
Professional Connectivity and Control Options

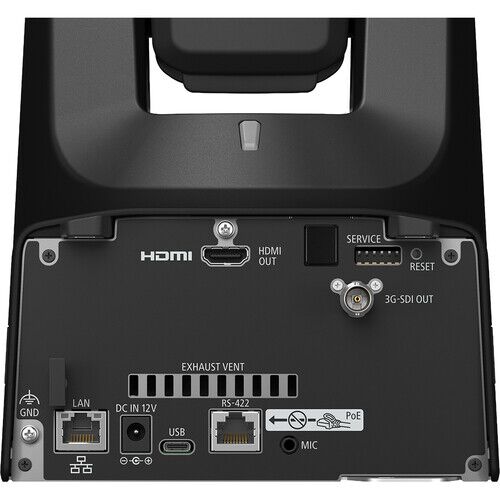

Built for maximum flexibility, the CR-N350 offers a comprehensive range of professional interfaces. It supports 3G-SDI, HDMI, IP streaming, and USB-C output, allowing it to fit seamlessly into any production setup. The camera is fully compatible with Canon’s RC-IP100 controller, third-party PTZ controllers, and Canon’s free Remote Camera Control Application, offering multiple control and automation options.
- Outputs: HDMI (Type A), 3G-SDI (BNC), Ethernet, USB-C
- Audio Input: 3.5mm stereo mini-jack (supports line/mic input)
- Audio Output: Embedded in HDMI/SDI/IP stream
- Control: IP (Web UI, Canon app), RS-422 serial, IR remote
Low-Light Performance and Color Control
Thanks to its advanced imaging system and wide ISO range, the CR-N350 excels in dimly lit environments. It features Canon’s renowned color science, with image settings such as Canon Log 3, Wide DR, and BT.709 for creative flexibility and consistent color reproduction across Canon’s cinema and broadcast lineup.
- Minimum Illumination: 1.5 lux (in low-light mode)
- Picture Profiles: Canon Log 3, Wide DR, HDR PQ, BT.709
- White Balance Modes: Auto, Manual, Preset, Color Temperature (2000K–15000K)
Durable Design and Mounting Flexibility
Finished in satin black, the CR-N350 features a sleek, professional design suitable for discreet installation in studios, houses of worship, live event venues, and conference rooms. It supports ceiling, wall, or tripod mounting, and includes a safety cable attachment point for secure installation.
- Mounting Options: Ceiling or wall mountable (mount plate included)
- Weight: 2.9 kg (6.4 lb)
- Dimensions: 154 × 178 × 164 mm
The Canon CR-N350 4K NDI PTZ Camera delivers broadcast-quality imaging, precise motion control, and modern IP-based connectivity—making it an ideal all-in-one solution for professional live streaming, studio production, and event broadcasting.
