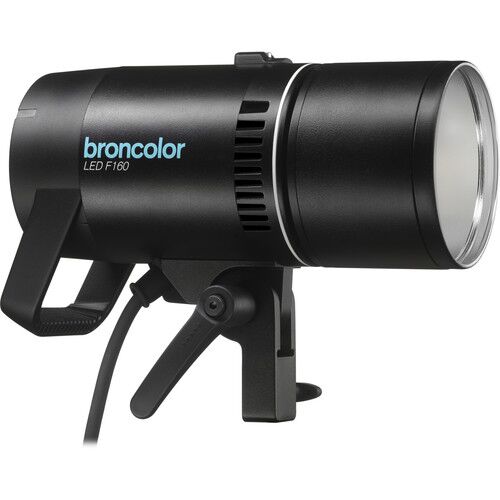

broncolor LED F160


SKU: 61.010.00 Categories: , ,


With the features and specs that you would expect from a company of Broncolor’s repute, the F160 LED Monolight is a compact light source that outputs the rough tungsten equivalent of 600W. You expect precise and accurate color control from Broncolor but they’ve really pushed the envelope with a CRI rating of 97 throughout its variable color range of 2800 to 6800K and a very impressive 98.6 rating at 5500K. There’s also Magenta / Green control and dimming from 0 to 100%. While you can make these adjustments locally on the fixture, you can also make them remotely via onboard Wi-Fi, or with DMX with the purchase of an optional module. Other convenience features include a daylight / tungsten shift key, easily readable OLED display, and a 100 to 240 VAC power supply for worldwide use. The F160 is also compatible with the full line of Broncolor light shapers.


Luminous flux 12 000 lumens
Colour temperature 2800 to 6800 K (in steps of 50)
Colour Rendering Index CRI 97+ (with 5500 K: 98.6)
Green / magenta setting (tint) control range: -25 to +25 (range restriction under 4000 K and over 5000 K)
Dimming 100 to 10 %
Update option via micro USB port (a computer is needed)
Wi-Fi module integrated
Remote control DMX (only with optional DMX adapter box)

Wi-Fi (bronControl app)

DMX / RDM only with optional DMX adapter box
Display passive matrix OLED diagonal 1.69 in 262 141 colours resolution 160 x 128 pixels
Focusing manual, stepless
Usage on stand

directly on the floor

ceiling suspension (safety rope optionally available)

Weight LED F160 lamp 1745 g (3.85 lbs) (lamp incl. protecting glass and integrated connection cable)
Dimensions lamp length*: 28.5 cm (11.22 in)

height: 16.0 cm (6.3 in) diameter: 12.0 cm (4.72 in)

(* incl. umbrella reflector)

Operating temperature range -10 °C to +60 °C
Expected lifespan LED >50 000 h
Cooling active (temperature-controlled fan)
Cognition light 2 x at the top left/right 5 colours (blue, green, violet, yellow, turquoise)
Protecting glass plastic
Compatibility compatible with broncolor bayonet
Menu language English
Power supply 80 to 264 VAC
Power input max. 160 watt
Length connection cable 1.5 m (59.06 in)
Guarantee period manufacturer’s warranty valid for 2 years from the date of purchase (for the first owner)
LED F160 (lamp with umbrella reflector*) 2120g
LED F160 (lamp incl. power supply / mains cable**) 3250g
LED F160 (standalone***) 1745g
