broncolor HMI FT1600 Kit


SKU: 42.118.XX Categories: ,

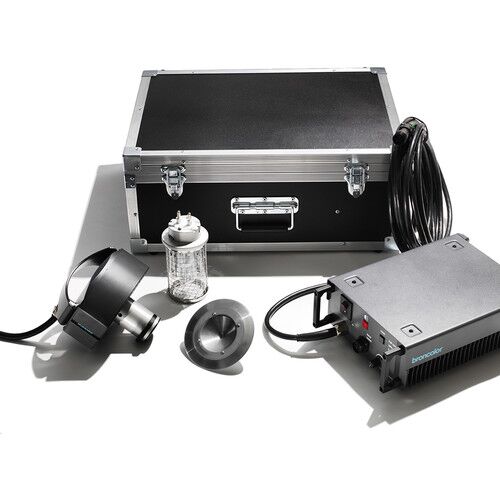

Incorporating the base components of the modular FT system, the HMI FT1600 Kit from Broncolor includes the 1600W lamp head, a lamp module with a daylight-balanced bulb and counter reflector, a 90-265 VAC ballast unit, a 24.6′-long cable, and a hard-sided transport case to protect the kit components during travel or storage.

The FT System revolves around the ability to pair a continuous light source with Para parabolic reflectors, using dedicated focusing rods for adjusting the light output. The included HMI FT1600 Lamp Head, along with the connected ballast, attaches to the rear of the optional focusing rod while the Lamp Device with bulb and counter reflector attach to the front of the rod. The HMI FT1600 also permits 100-50% dimming control with consistent color, is flicker-free to suit video and high-speed shooting applications, and has a CRI of 95+.


Broncolor HMI FT1600 Lamp Device with Bulb & Counter-Reflector
Broncolor HMI FT1600 Lamphead
Broncolor Electronic Ballast HMI 800.1600
Broncolor Lamp Extension Cable for HMI F400, F575.800, F800, F1600, & FT800.1600 (24.6′)
Broncolor Transport Case for FT Lamp System


Broncolor HMI FT1600 Lamphead Specs

Included Lamps None
Supported Wattage 800 to 1600 W
Color Accuracy Standard CRI 95
Dimming Yes
Base Type Medium Bi-Post G22


Cable Length 11.8″ / 3.6 m
IP Rating IP20
Dimensions 6.7 x 5.7 x 5.9″ / 170 x 145 x 150 mm
Weight 3.5 lb / 1.6 kg

Broncolor Electronic Ballast HMI 800.1600 Specs

Power Output 800 W and 1,600 W
Dimming 100-50%
Compatibility HMI F575.800 and HMI F1600 lamps
Thermal Protection Yes
Power Requirements 85-265 VAC, 1,800 VA
Dimensions 14.2 x 9.4 x 4.7″ (360 x 240 x 120 mm)
Weight 15.2 lb (6.9 kg)

Broncolor Lamp Extension Cable For HMI F400, F575.800, F800, F1600, & FT800.1600 (24.6′) Specs

Length 24.6′ (7.5 m)

Broncolor Transport Case For FT Lamp System Specs

Carrying Case
Type Case
Recommended Use For lighting kit
