SmallHD 1703 P3X 17″ Studio Monitor Kit (V-Mount)

SKU: MON-1703-P3X-VM-KIT Category: Tag:

Description

Whether producing content for broadcast or cinema distribution, you can depend on SmallHD’s 1703 P3X 17″ Studio Monitor to brightly display accurate colors in professional field, studio, and post-production settings. Each 1703 P3X is color calibrated by SmallHD to ensure consistently accurate color representation, with 100% coverage of both REC 709 and DCI-P3 color spaces. Should you find that the display requires recalibration, the Color Intelligence engine accepts LUTs from industry standard solutions.

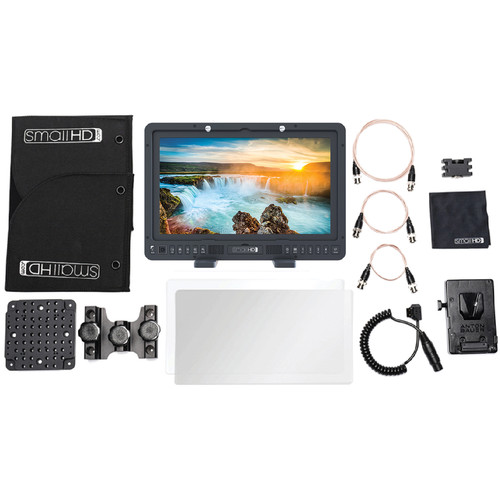

Included

  • SmallHD 1703 P3X 17″ Studio Monitor
    • SmallHD HDMI Cable (3′)
    • Power Cord
    • Limited 1-Year Warranty
  • SmallHD V-Mount Power Kit + Cheese Plate
    • SmallHD V-Mount Power Kit
    • SmallHD Pro Battery Cheese Plate
  • SmallHD Acrylic Screen Protector Anti-Reflective Deluxe Edition for 1700 Series Monitors
    • Limited 1-Year Warranty
  • SmallHD Sun Hood for 1700 Series Production Monitors
    • 4 x 1/4″-20 Thumbscrews
    • Limited 1-Year Warranty
  • SmallHD C-Stand Mount with VESA Compatibility for 1700 Series & Above
    • 4 x Mounting Screw
    • Limited 1-Year Warranty
  • SmallHD RapidRail Mount for 1/4″-20 Accessories
    • Limited 1-Year Warranty
  • SmallHD HDMI Cable (3′)
    • Limited 1-Year Warranty
  • SmallHD Thin BNC Cable (12″)
    • Limited 1-Year Warranty
  • SmallHD Thin BNC Cable (24″)
    • Limited 1-Year Warranty
  • SmallHD Thin BNC Cable (48″)
    • Limited 1-Year Warranty
  • Set of 2 Monitor Feet
  • AC Adapter
  • Limited 1-Year Hardware Warranty



Specifications

Display
Panel Type IPS-Type LCD
Display Size 17.0″ / 43.0 cm
Screen Resolution 1920 x 1080
Aspect Ratio 16:9
Viewing Angle Horizontal: 178° (89/89)
Vertical: 178° (89/89)
Maximum Brightness 900 cd/m2
Contrast Ratio 1400:1
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Pixels Per Inch (ppi) 133 ppi
Color Gamut 100% DCI-P3
Image Controls False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform



I/O
Video 2 x BNC (3G-SDI) Input
1 x HDMI Type A Input
2 x BNC (3G-SDI) Output
1 x HDMI Type A Output
Embedded Audio HDMI
SDI
Audio 1 x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker None
Power 1 x 2-Pin LEMO Output
3 x USB Type-A Output
1 x IEC Input
1 x 4-Pin XLR Input
Card Slot 1 x SD



Format Support
Video Format SDI (10-Bit 4:2:2 YCC)
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
480i
576i
HDMI (8/10/12-Bit 4:4:4 RGB and YCC)
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
576p: 50/100
480p: 59.94/60/119.88/120
480i: 59.94/60/119.88/120
576i: 50/100/200



Power
Battery Type None



Environmental
Certifications CE, FCC, IC, RoHS, as per Manufacturer
Operating Temperature 32 to 100°F / 0 to 37.8°C
Storage Temperature 0 to 104°F / -17.8 to 40°C
