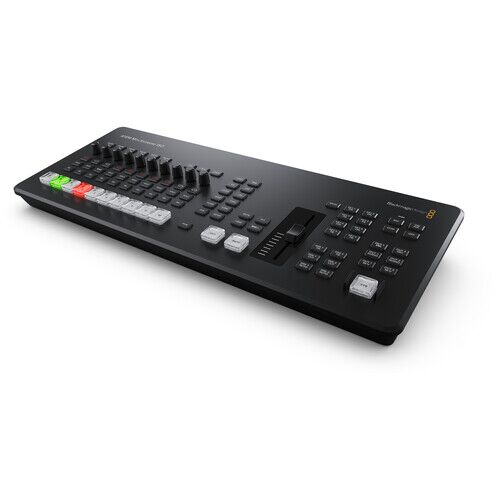

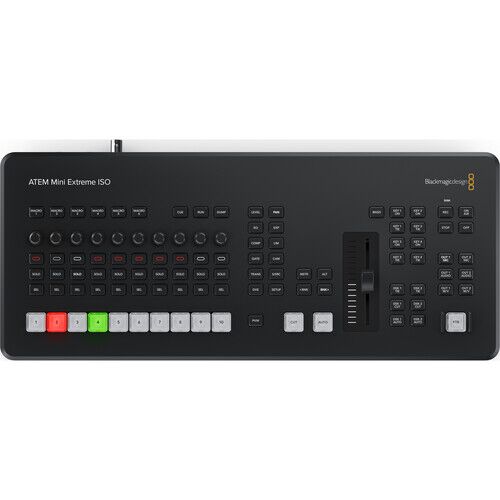

Blackmagic Design ATEM Mini Extreme

R19,595.00

SKU: SWATEMMINICEXT Categories: ,

Description

The Blackmagic Design ATEM Mini Extreme is an 8-input live production switcher for live streaming. It features an integrated control panel and has advanced broadcast features. In addition to live streaming using RTMP protocols, you can also output your program as if it was a webcam over USB. This versatile switcher’s eight independent HDMI inputs accept all popular HD signals up to 1080p60. Each input has discrete frame rate and format converters, and it supports re-syncing for seamless switching between a variety of pro and consumer cameras, game consoles, and computer feeds.

Switch, add effects, color grade, and key in real time using the control surface’s buttons, or via the software control panel. CCU functions are available for controlling Blackmagic Studio and URSA Mini/Broadcast/Micro Studio cameras from the switcher. The ATEM Mini Extreme supports up to nine layers, with four upstream and two downstream keyers, up to four chroma keyers, up to four linear keyers, two DVE with borders and drop shadow, five pattern generators, and two color generators. Designed for live streaming or webcam production, the Mini Extreme has HDMI outputs to feed monitors and supports up to 16-screen multiview.

Specifications

Mix Effects
Available M/E Layers 9 M/E
Effect Types 2 x DVE
4 x Luma Key
4 x Chroma Key
Graphics Memory 20 Images
Downstream Keys 2 x Chroma, Luma, DVE
Generators 5 x Pattern
2 x Color
Audio Mixing 2-Channel Mixing



Processing
Switching Type Pushbutton, Software
Processing Resolution 1080p



Input
Number of Video Input Sources 8
Video Input Connectors 8 x HDMI
Input Video Format HDMI (10-Bit 4:2:2 YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
Audio Input Connectors 2 x 1/8″ / 3.5 mm TRS Stereo Analog Female
Input Audio Format Analog
Embedded Audio Input HDMI: 2-Channel (per Input)



Output
Video Output Channels 2
Video Output Connectors 2 x HDMI
Output Video Format HDMI (10-Bit 4:2:2 YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Output Connectors 1 x 1/8″ / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female
Embedded Audio Output HDMI: 2-Channel
Multiview Output 16-Way Multiview viaHDMI



Connectivity
Other I/O 1 x RJ45
2 x USB Type-C
HDCP Support None



IP Encoding/Decoding
IP Video H.264:
1920 x 1080 Encoding
Transport Protocols RTMP
Simultaneous Streams 1 Streams



Internal Recording
Recording Modes 1920 x 1080p up to 60 fps (MP4)



Hardware
OS Compatibility macOS 10.15
macOS 11.1 or Later
Windows 10



Power
Power Connector 1 x Barrel (12 VDC) Input
Power Consumption Device: 36 W



Environmental
Operating Temperature 41 to 104°F / 5 to 40°C
Storage Temperature 14 to 140°F / -10 to 60°C
Operating Humidity 0 to 70%
